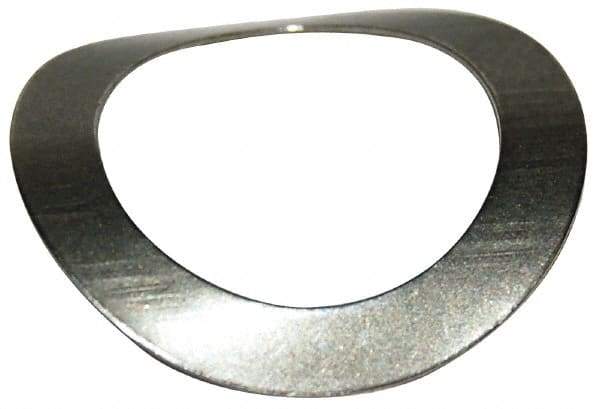

Gardner Spring - 5/16" Bolt, 0.327" ID, Grade 301 Stainless Steel, Curved Disc Spring - 0.612" OD, 0.077" High, 0.013" Thick
Item #: 03714854
Brand: Gardner Spring
Model #: MU312-0130-S
Exact Tooling IR#: 04
Features and Benefits
Curved disc springs create a spring-like action and can support heavy loads. They are slightly bent along the outside diameter.
| Product Specifications | |
|---|---|
| Type | Curved Disc Spring |
| Bolt Size (Inch) | 5/16 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.3270 |
| Material | Stainless Steel |
| Material Grade | 301 |
| Outside Diameter (Decimal Inch) | 0.6120 |
| Thickness (Decimal Inch) | 0.0130 |
| Overall Height (Decimal Inch) | 0.0770 |
| Deflection (Decimal Inch) | 0.0256 |
| Deflection to Flat (Decimal Inch) | 0.0420 |
| Load at Deflection (Lb.) | 9.00 |
