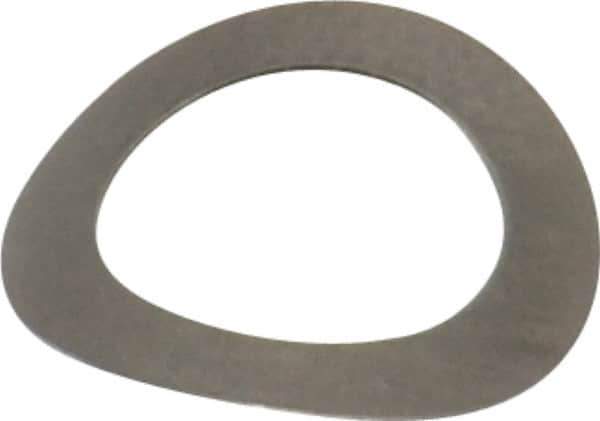

Gardner Spring - 1/4" Bolt, 0.269" ID, Grade 301 Stainless Steel, Curved Disc Spring - 0.423" OD, 0.055" High, 0.008" Thick
Item #: 03714797
Brand: Gardner Spring
Model #: MU250-0082-S
Exact Tooling IR#: 04
Features and Benefits
Curved disc springs create a spring-like action and can support heavy loads. They are slightly bent along the outside diameter.
| Product Specifications | |
|---|---|
| Type | Curved Disc Spring |
| Bolt Size (Inch) | 1/4 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.2690 |
| Material | Stainless Steel |
| Material Grade | 301 |
| Outside Diameter (Decimal Inch) | 0.4230 |
| Thickness (Decimal Inch) | 0.0080 |
| Overall Height (Decimal Inch) | 0.0550 |
| Deflection (Decimal Inch) | 0.0187 |
| Deflection to Flat (Decimal Inch) | 0.0320 |
| Load at Deflection (Lb.) | 2.50 |
