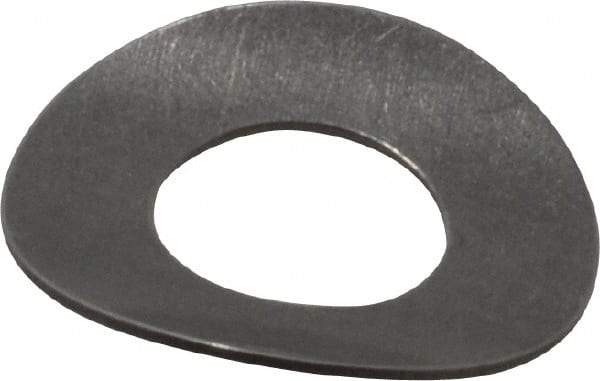

Gardner Spring - #10 Bolt, 0.2" ID, Grade 301 Stainless Steel, Curved Disc Spring - 0.423" OD, 0.047" High, 0.011" Thick
Item #: 03714771
Brand: Gardner Spring
Model #: MU190-0113-S
Exact Tooling IR#: 04
Features and Benefits
Curved disc springs create a spring-like action and can support heavy loads. They are slightly bent along the outside diameter.
| Product Specifications | |
|---|---|
| Type | Curved Disc Spring |
| Screw Size (Wire) | #10 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.2000 |
| Material | Stainless Steel |
| Material Grade | 301 |
| Outside Diameter (Decimal Inch) | 0.4230 |
| Thickness (Decimal Inch) | 0.0110 |
| Overall Height (Decimal Inch) | 0.0470 |
| Deflection (Decimal Inch) | 0.0143 |
| Deflection to Flat (Decimal Inch) | 0.0270 |
| Load at Deflection (Lb.) | 9.00 |
