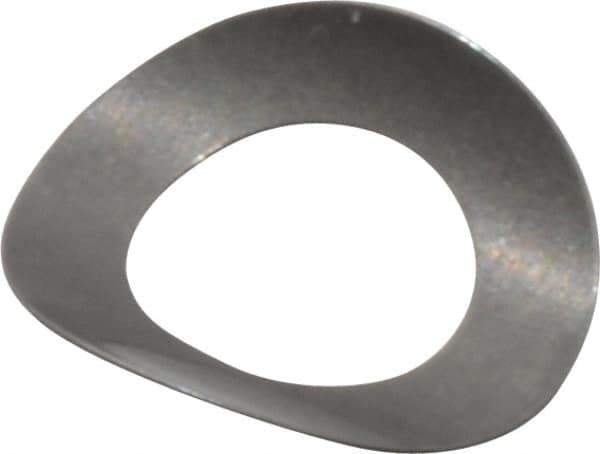

Gardner Spring - #5 Bolt, 0.135" ID, Grade 301 Stainless Steel, Curved Disc Spring - 0.245" OD, 0.049" High, 0.004" Thick
Item #: 03714722
Brand: Gardner Spring
Model #: MU125-0040-S
Exact Tooling IR#: 04
Features and Benefits
Curved disc springs create a spring-like action and can support heavy loads. They are slightly bent along the outside diameter.
| Product Specifications | |
|---|---|
| Type | Curved Disc Spring |
| Screw Size (Wire) | #5 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.1350 |
| Material | Stainless Steel |
| Material Grade | 301 |
| Outside Diameter (Decimal Inch) | 0.2450 |
| Thickness (Decimal Inch) | 0.0040 |
| Overall Height (Decimal Inch) | 0.0490 |
| Deflection (Decimal Inch) | 0.0180 |
| Deflection to Flat (Decimal Inch) | 0.0260 |
| Load at Deflection (Lb.) | 1.00 |
