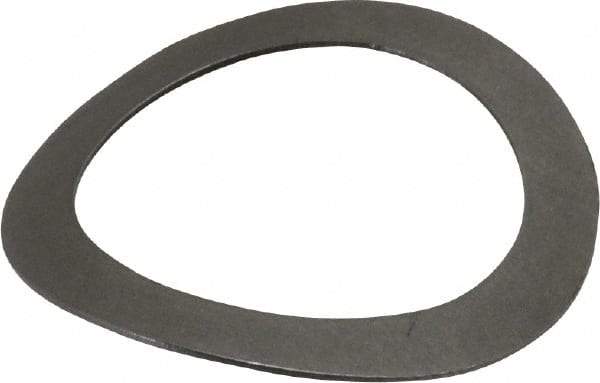

Gardner Spring - 3/4" Bolt, 0.8" ID, Grade 1074 Steel, Curved Disc Spring - 1.103" OD, 0.138" High, 0.021" Thick
Item #: 03714714
Brand: Gardner Spring
Model #: MU750-0210
Exact Tooling IR#: 04
Features and Benefits
Curved disc springs create a spring-like action and can support heavy loads. They are slightly bent along the outside diameter.
| Product Specifications | |
|---|---|
| Type | Curved Disc Spring |
| Bolt Size (Inch) | 3/4 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.8000 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 1.1030 |
| Thickness (Decimal Inch) | 0.0210 |
| Overall Height (Decimal Inch) | 0.1380 |
| Deflection (Decimal Inch) | 0.0468 |
| Deflection to Flat (Decimal Inch) | 0.0690 |
| Load at Deflection (Lb.) | 12.00 |
