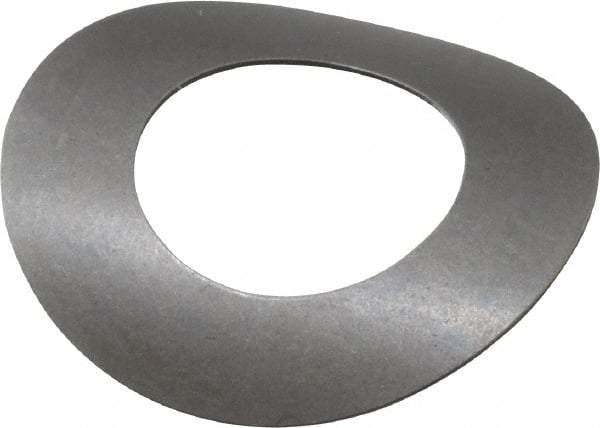

Gardner Spring - 3/8" Bolt, 0.395" ID, Grade 1074 Steel, Curved Disc Spring - 0.735" OD, 0.129" High, 0.011" Thick
Item #: 03714607
Brand: Gardner Spring
Model #: MU375-0110
Exact Tooling IR#: 04
Features and Benefits
Curved disc springs create a spring-like action and can support heavy loads. They are slightly bent along the outside diameter.
| Product Specifications | |
|---|---|
| Type | Curved Disc Spring |
| Bolt Size (Inch) | 3/8 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.3950 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.7350 |
| Thickness (Decimal Inch) | 0.0110 |
| Overall Height (Decimal Inch) | 0.1290 |
| Deflection (Decimal Inch) | 0.0472 |
| Deflection to Flat (Decimal Inch) | 0.0730 |
| Load at Deflection (Lb.) | 6.00 |
