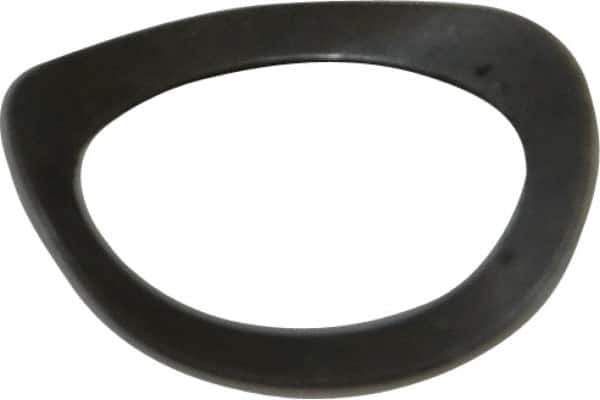

Gardner Spring - 5/16" Bolt, 0.331" ID, Grade 1074 Steel, Curved Disc Spring - 0.49" OD, 0.077" High, 0.008" Thick
Item #: 03714557
Brand: Gardner Spring
Model #: MU312-0075
Exact Tooling IR#: 04
Features and Benefits
Curved disc springs create a spring-like action and can support heavy loads. They are slightly bent along the outside diameter.
| Product Specifications | |
|---|---|
| Type | Curved Disc Spring |
| Bolt Size (Inch) | 5/16 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.3310 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.4900 |
| Thickness (Decimal Inch) | 0.0080 |
| Overall Height (Decimal Inch) | 0.0770 |
| Deflection (Decimal Inch) | 0.0278 |
| Deflection to Flat (Decimal Inch) | 0.0280 |
| Load at Deflection (Lb.) | 1.66 |
