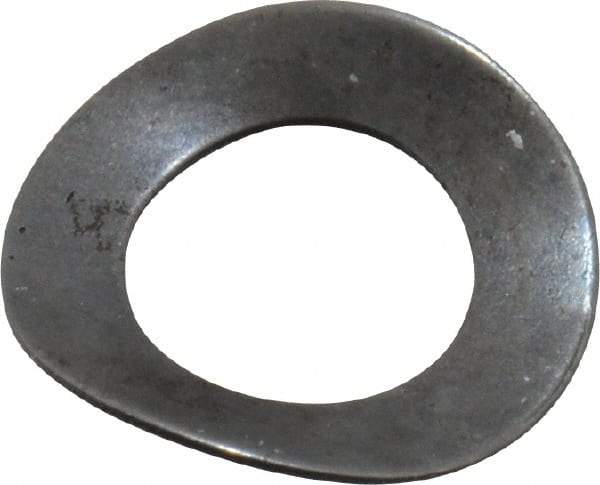

Gardner Spring - #10 Bolt, 0.2" ID, Grade 1074 Steel, Curved Disc Spring - 0.37" OD, 0.047" High, 0.009" Thick
Item #: 03714474
Brand: Gardner Spring
Model #: MU190-0090
Exact Tooling IR#: 04
Features and Benefits
Curved disc springs create a spring-like action and can support heavy loads. They are slightly bent along the outside diameter.
| Product Specifications | |
|---|---|
| Type | Curved Disc Spring |
| Screw Size (Wire) | #10 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.2000 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.3700 |
| Thickness (Decimal Inch) | 0.0090 |
| Overall Height (Decimal Inch) | 0.0470 |
| Deflection (Decimal Inch) | 0.0152 |
| Deflection to Flat (Decimal Inch) | 0.0150 |
| Load at Deflection (Lb.) | 3.45 |
