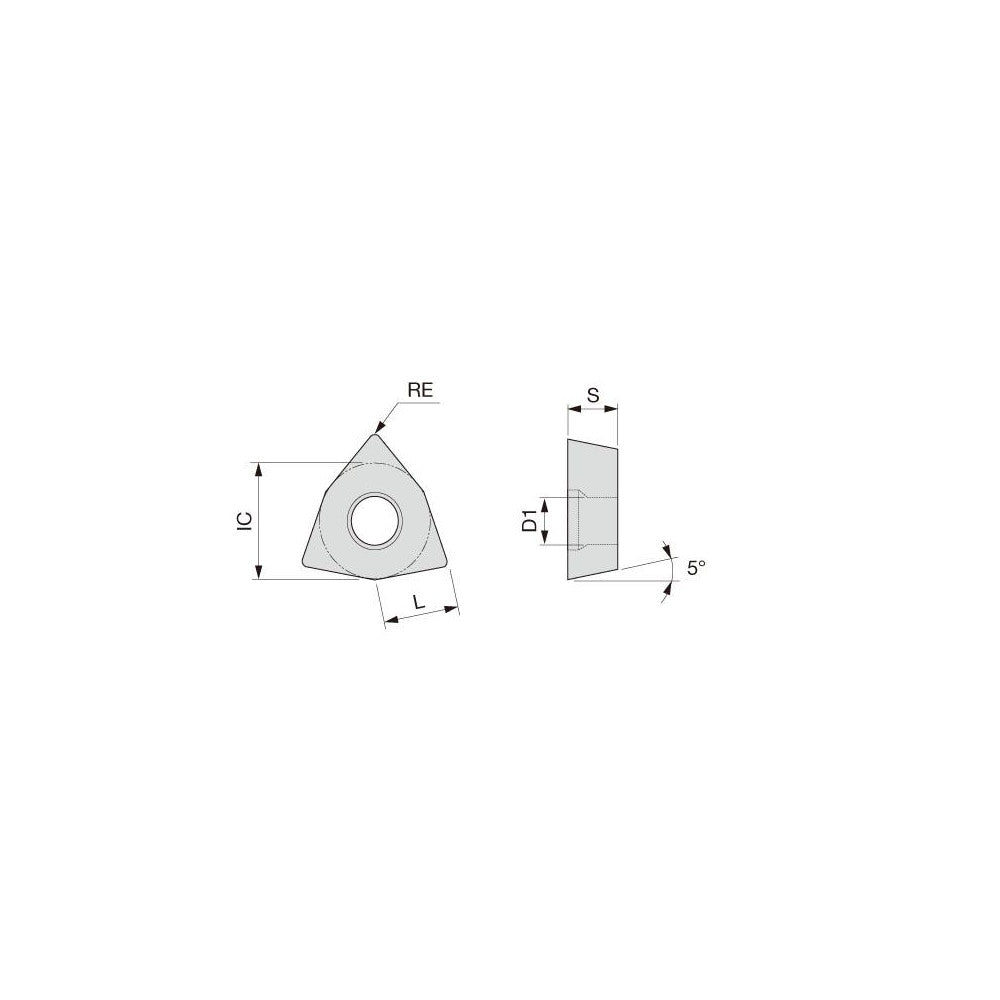

Boring Inserts; Insert Style: WBGT; Insert Size Code: 520.5; Insert Material: Carbide; Material Grade: K10, N10, M10, P10; Manufacturer Grade: TH10; Inscribed Circle (Inch): 5/32
Item #: 20867883
Brand: Tungaloy
Model #: 6809534
Product Specifications
| Insert Style | WBGT |
| Insert Size Code | 520.5 |
| Insert Material | Carbide |
| Material Grade | K10; N10; M10; P10 |
| Manufacturer Grade | TH10 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (Inch) | 1/128 |
| Relief Angle | 5 |
| Rake | Positive |
| Chipbreaker | W08 |
| Series | WBGTL-W08 |
| Coating Process | Uncoated |
| Included Angle | 80 |
| Insert Shape | Trigon |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Cast Iron; Superalloys & Titanium |
| Primary Workpiece Material Code | S; H; K; N |
| Iso Code | WBGT520.5L-W08 TH10 |
| Standards | ISO; ANSI |
| Rake Angle | 15 |
| Manufacturers Catalog Number | 6809534 |
| Length (Decimal Inch - 4 Decimals) | 0.2680 |
| Width (Decimal Inch - 4 Decimals) | 0.268 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23242105 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
