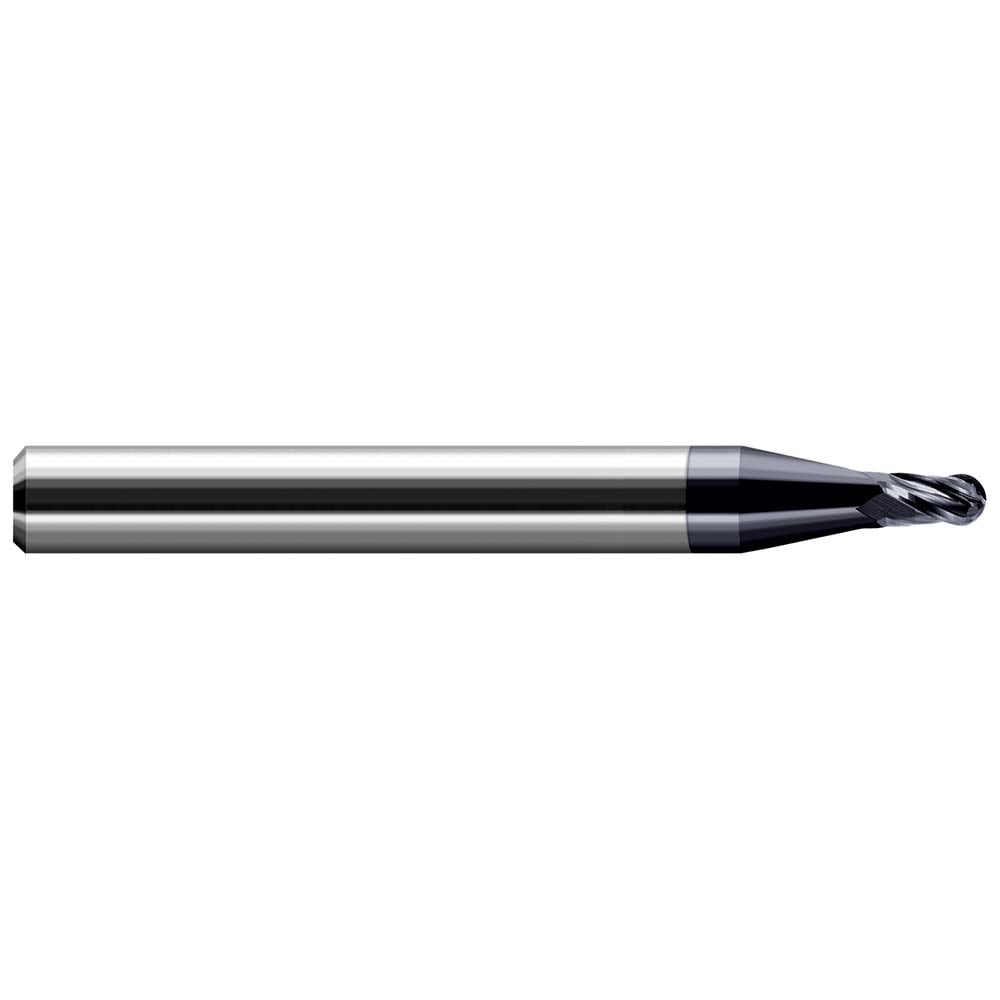

Ball End Mill: 9/64" Dia, 0.2200" LOC, 2 Flute, Solid Carbide
Item #: 06448229
Brand: Harvey Tool
Model #: 50909-C3
Product Specifications
| Mill Diameter (Inch) | 9/64 |
| Mill Diameter (Decimal Inch) | 0.1406 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2 |
| Shank Diameter (Inch) | 3/16 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 2.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.4000 |
| Length Type | Standard |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Nose Radius (Decimal Inch) | 0.0703 |
| Reach Length (Decimal Inch) | 0.2200 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Miniature End Mills - Ball - Stub & Standard, Miniature End Mills |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2200 |
| Manufacturers Catalog Number | 50909-C3 |
| System Of Measurement | Fractional Inch |
