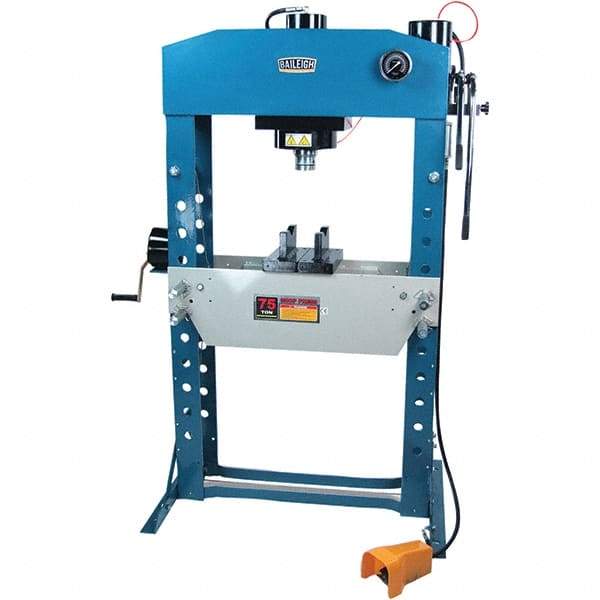

Baileigh - 75 Ton Pneumatic Shop Press
Item #: 03461472
Brand: Baileigh
Model #: 1004859
Exact Tooling IR#: 04
Product Specifications
75 Ton Pneumatic Shop Press -
| Power Type | Pneumatic |
| Pressure (Ton) | 75 |
| Stroke (Decimal Inch) | 9.8000 |
| Ram Size (Inch) | 3-1/2 |
| Ram Size (Decimal Inch) | 3.5000 |
| Screw Travel (Inch) | 9-7/8 |
| Distance Between Uprights (Inch) | 31-1/2 |
| Width Between Table Channels (Inch) | 10-1/4 |
| Width Between Table Channels (Decimal Inch) | 10.2500 |
| Style | H-Frame Movable Table |
| Table Length (Inch) | 31-1/2 |
| Table Depth (Inch) | 11 |
| Air Connector Size (Inch) | 1/4 |
| Base Width/Diameter (Decimal Inch) | 45.1200 |
| Base Depth (Inch) | 31-1/2 |
| Overall Length (Inch) | 57-1/4 |
| Overall Height (Decimal Inch) | 75.3700 |
