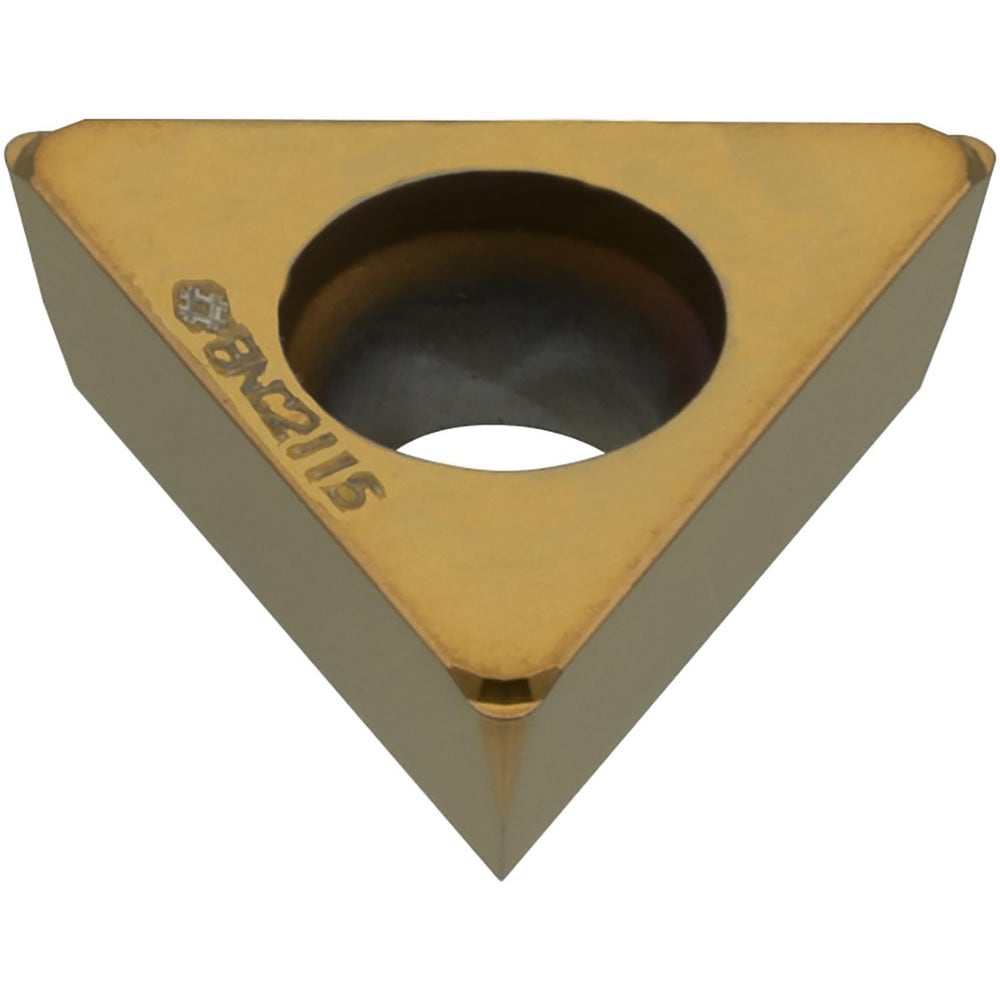

Brand: Sumitomo / Part #: 16W3FNY
Item #: 91922708
Brand: Sumitomo
Model #: 16W3FNY
Product Specifications
| Insert Style | TPGT |
| Insert Shape Code | T |
| Insert Size Code | 222 |
| Insert Shape | Triangle |
| Coating/Finish | TiAlSiN; TiCN |
| Manufacturer Grade | BNC2115 |
| Corner Radius (mm) | 0.80 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.4000 |
| Maximum Depth of Cut (mm) | 0.50 |
| Inscribed Circle (mm) | 6.35 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 3.18 |
| Clearance Code | P |
| Tolerance Code | G |
| Relief Angle | 11.000 |
| Series | BNC2115 |
| Manufacturers Catalog Number | 3NCTPGT222FV-BNC2115 |
| Cutting Direction | Neutral |
| Chip Breaker | FV |
| Width (Mm - 2 Decimals) | 11.00 |
