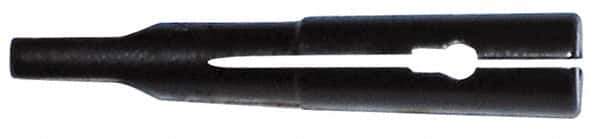

Scully Jones - 9/16 Inch, MT2 Outside Morse Taper, Drill Driver - 1/4 Inch Projection, 19/64 to 0.303 Inch Drill Tang Thickness
Item #: 03217213
Brand: Scully Jones
Model #: 09527
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Driver Type | Drill Driver |
| Outside Morse Taper Size | MT2 |
| Drill Size (mm) | 14.29 |
| Drill Size (Inch) | 9/16 |
| Drill Size (Decimal Inch) | 0.5625 |
| Projection (Decimal Inch) | 0.2500 |
| Drill Depth (Decimal Inch) | 1.3100 |
| Drill Tang Compatible | Yes |
| Maximum Drill Tang Thickness (Decimal Inch) | 0.3030 |
| Minimum Drill Tang Thickness (Decimal Inch) | 0.2970 |
| Drill Tang Length (Decimal Inch) | 0.5000 |
| Approval Listing/Regulations | ANSI/ASME B94.35 |
| Runout Maximum (Decimal Inch) | 0.0020 |
