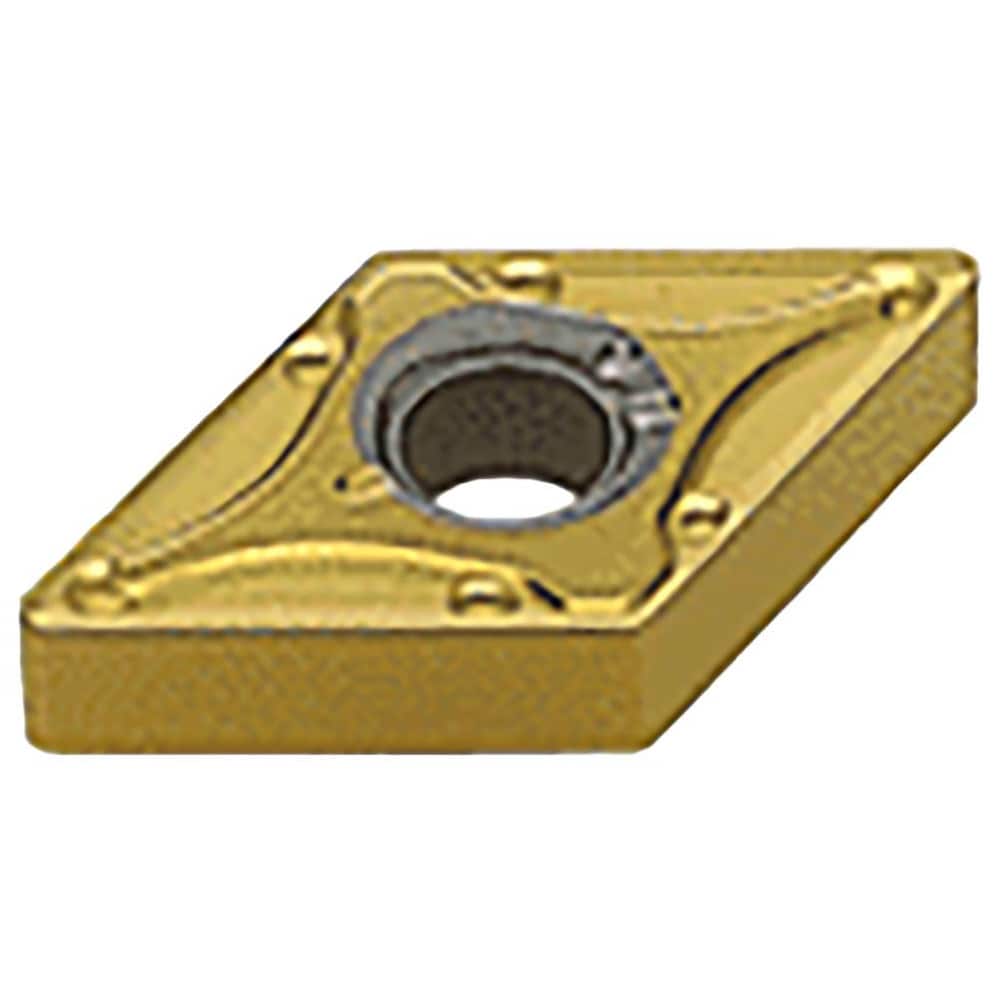

Turning Insert: DNMG433MA VP15TF, Carbide
Item #: 42165365
Brand: Mitsubishi
Model #: 645386
Product Specifications
| ANSI Insert Code | DNMG433 |
| ISO Insert Code | DNMG150412 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 55 |
| Manufacturer Grade | VP15TF |
| Coating/Finish | AlTiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | DNMG |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Fractional Inch) | 13/64 |
| Maximum Depth of Cut (Decimal Inch) | 0.2031 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.2200 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | DNMG150412-MA |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | DNMG433MA |
| Material Grade | M15; S30; P35; S10; P15; K35; M35; K15 |
| Coating Classification | PVD |
| Chip Breaker | MA |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Boring; Facing; Turning; Back Turning; Boring |
| ANSI Size Code | 433 |
| ISO Size Code | 150412 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 433 |
