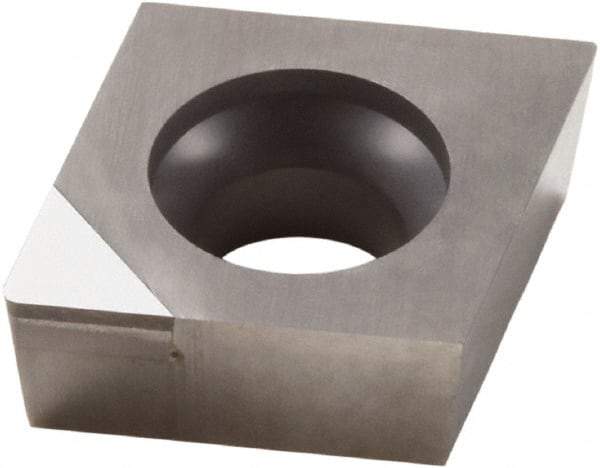

Seco - CCMW432 L1 Grade PCD20 Polycrystalline Diamond (PCD) Turning Insert - 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 02916922
Brand: Seco
Model #: 89762
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | CCMW |
| Insert Size | 432 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | PCD20 |
| Chip Breaker | L1 |
| Hole Diameter (Decimal Inch) | 0.2020 |
| Relief Angle | 7 |
| Included Angle | 80 |
| Insert Holding Method | Clamp |
| Shape | Diamond |
