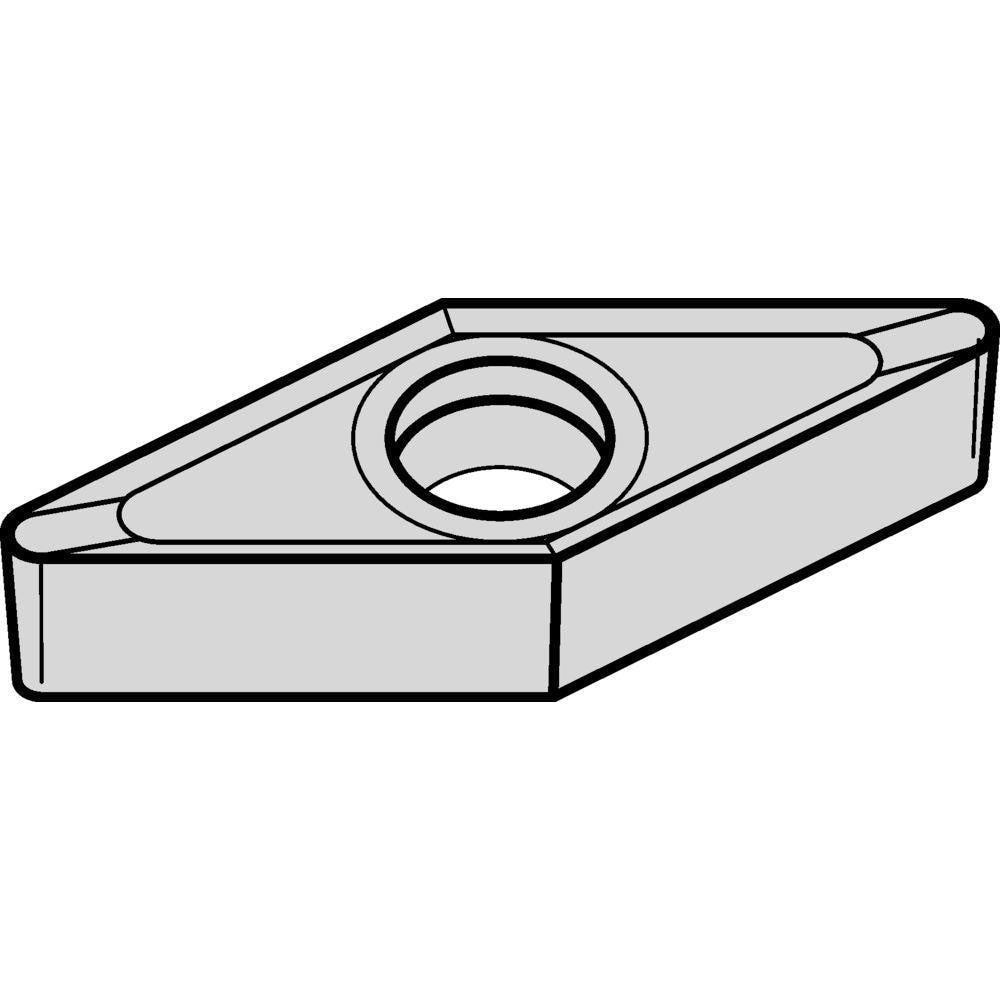

Turning Insert: VBGT2205HP KCU10B, Carbide
Item #: 80130453
Brand: Kennametal
Model #: 7093366
Product Specifications
| ANSI Insert Code | VBGT2205 |
| ISO Insert Code | VBGT110302 |
| Relief Angle | 5 |
| Insert Style | VBGT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 35 |
| Manufacturer Grade | KCU10B |
| Coating/Finish | AlTiN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Width (Inch) | 1/8 |
| Clearance Code | B |
| Tolerance Code | G |
| Primary Workpiece Material Code | P; S; K; M; N |
| Chip Breaker | HP |
| Width (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (mm - 2 Decimals) | 3.18 |
| ANSI Size Code | 2205 |
| ISO Size Code | 110302 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2205 |
| Country of Origin | UNITED STATES |
