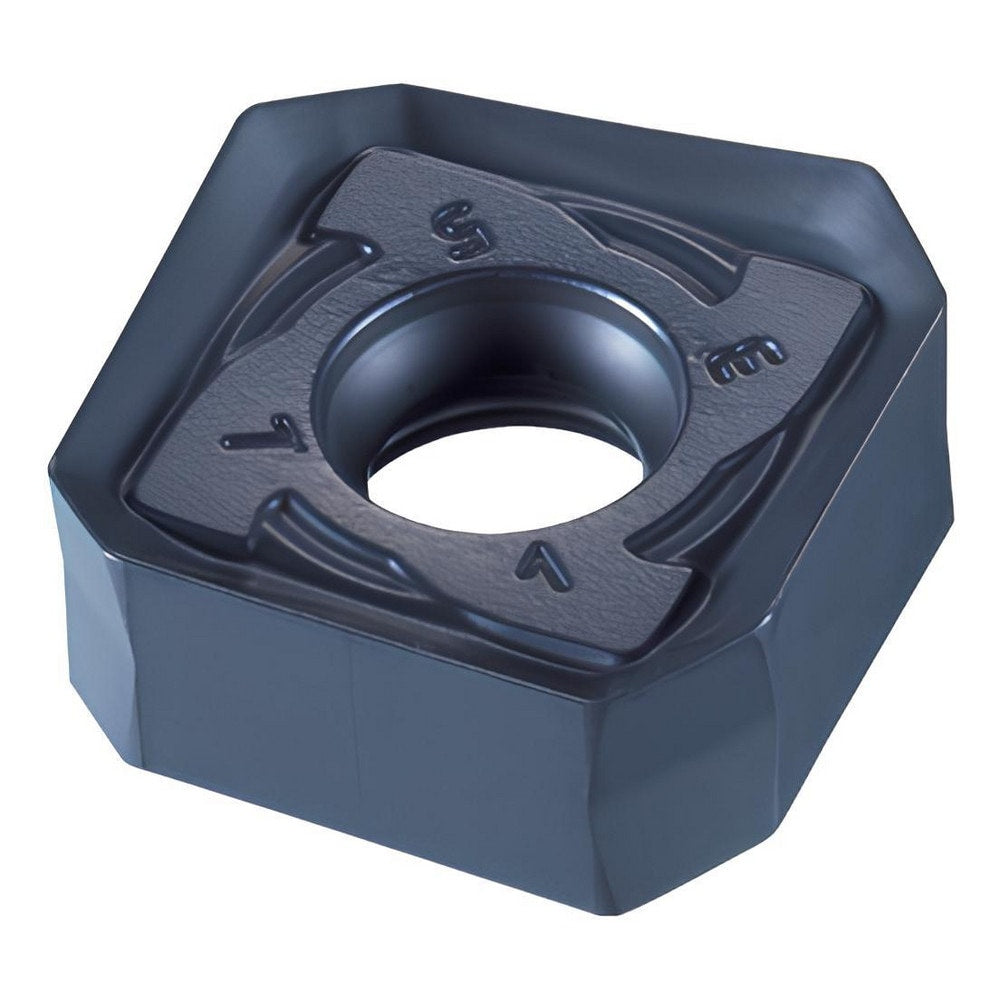

Milling Insert: SNKU1505AZER-GR XC1015, Solid Carbide
Item #: 33626789
Brand: OSG
Model #: 7812060
Product Specifications
| Insert Style | SNKU |
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | XC1015 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2813 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 0.00 |
| Insert Size Code | 1505 |
| Width (Inch) | 5/8 |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 9/32 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1437 |
| Series | 78PAS |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SNKU1505AZER-GR |
| Iso Code | SNKU1505AZER-GR |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 7812060 |
| Cutter Series Compatibility | 78PAS |
| Chip Breaker | GR |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 45 |
| Length (mm) | 3.65 |
| Width (Decimal Inch - 4 Decimals) | 0.6252 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6252 |
