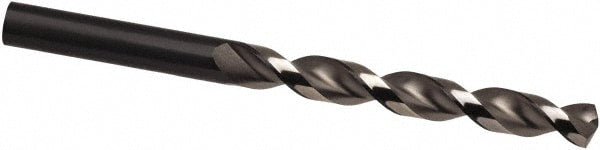

Jobber Drill: 15.50 mm Dia, 130 deg Point, High Speed Steel
Item #: 43252089
Brand: Guhring
Model #: 9005490155000
Product Specifications
| Drill Bit Size (mm) | 15.50 |
| Drill Bit Size (Decimal Inch) | 0.6102 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6102 |
| Overall Length (mm) | 178.00 |
| Overall Length (Decimal Inch) | 7.0079 |
| Spiral Type | Regular |
| Flute Length (mm) | 120.00 |
| Flute Length (Decimal Inch) | 4.7244 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 15.5 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 15.00+ |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
