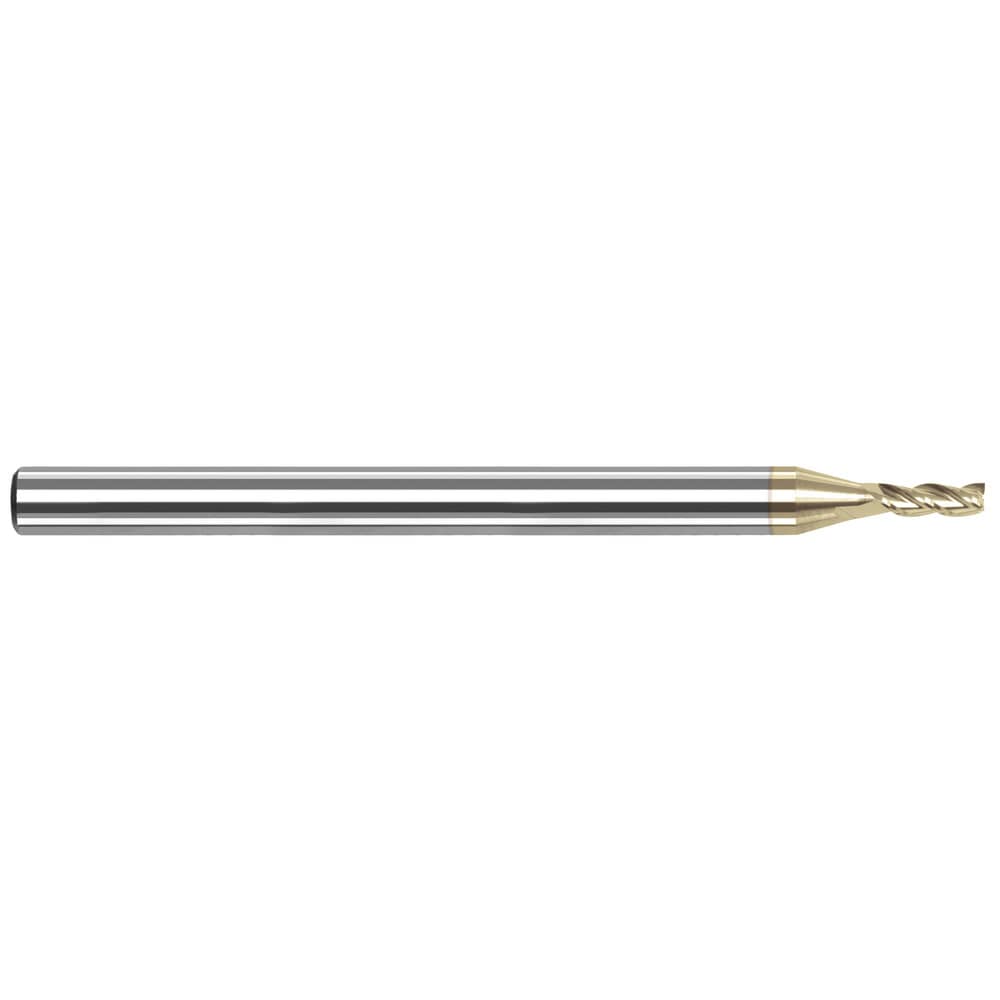

Square End Mill: 5/64" Dia, 15/64" LOC, 3 Flute, Solid Carbide
Item #: 87868188
Brand: Harvey Tool
Model #: 942278-C7
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0780 |
| Mill Diameter (Inch) | 5/64 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.2340 |
| Length of Cut (Inch) | 15/64 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | ZrN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 42 |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Primary Workpiece Material Code | N |
| Coating/Finish | ZrN |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Series | Variable Helix End Mills for Aluminum Alloys - Square |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
