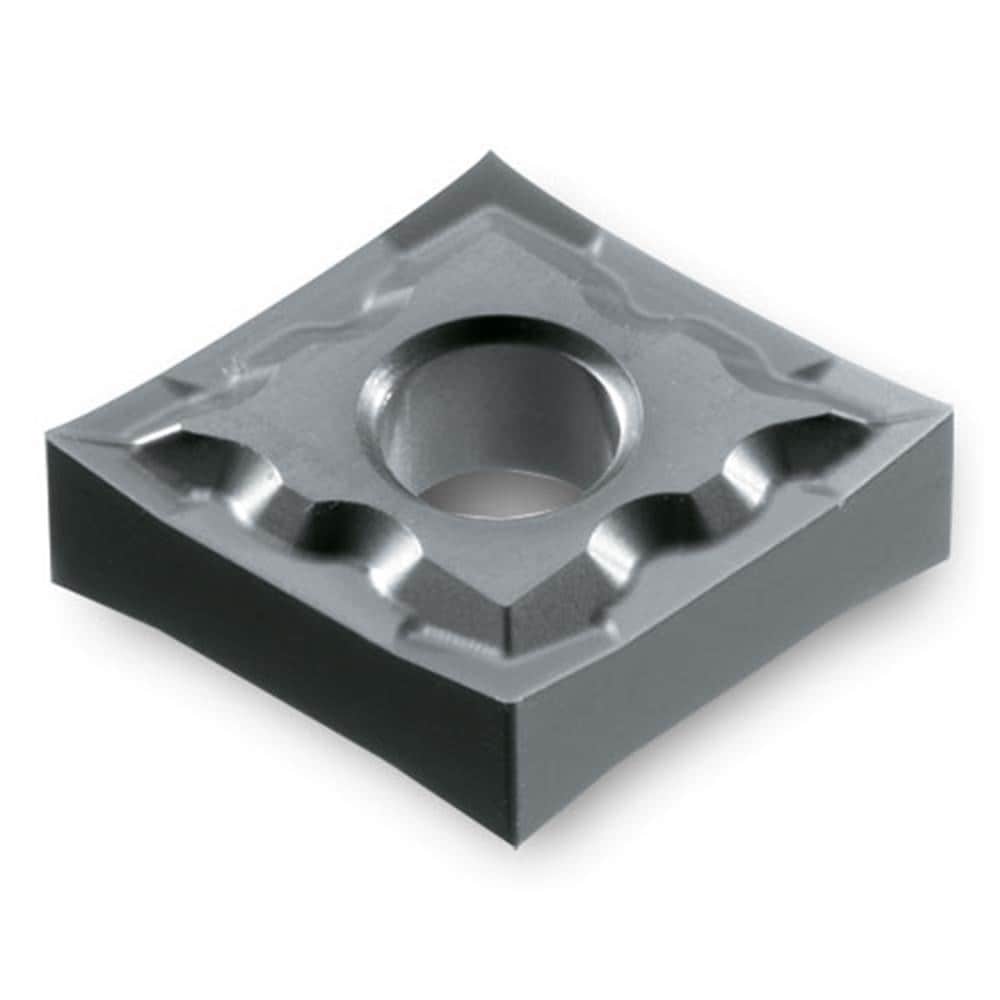

Turning Insert: CNGG430.5ML TT9080, Carbide
Item #: 98656093
Brand: Ingersoll Cutting Tools
Model #: 6185992
Product Specifications
| ANSI Insert Code | CNGG430.5 |
| ISO Insert Code | CNGG120402 |
| Relief Angle | 0 |
| Insert Style | CNGG |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 80 |
| Manufacturer Grade | TT9080 |
| Coating/Finish | AlTiN; TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | CNGG |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Maximum Depth of Cut (Decimal Inch) | 0.0470 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5080 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | CNGG120402ML TT9080 |
| Chip Breaker | ML |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| ANSI Size Code | 430.5 |
| ISO Size Code | 120402 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 430.5 |
