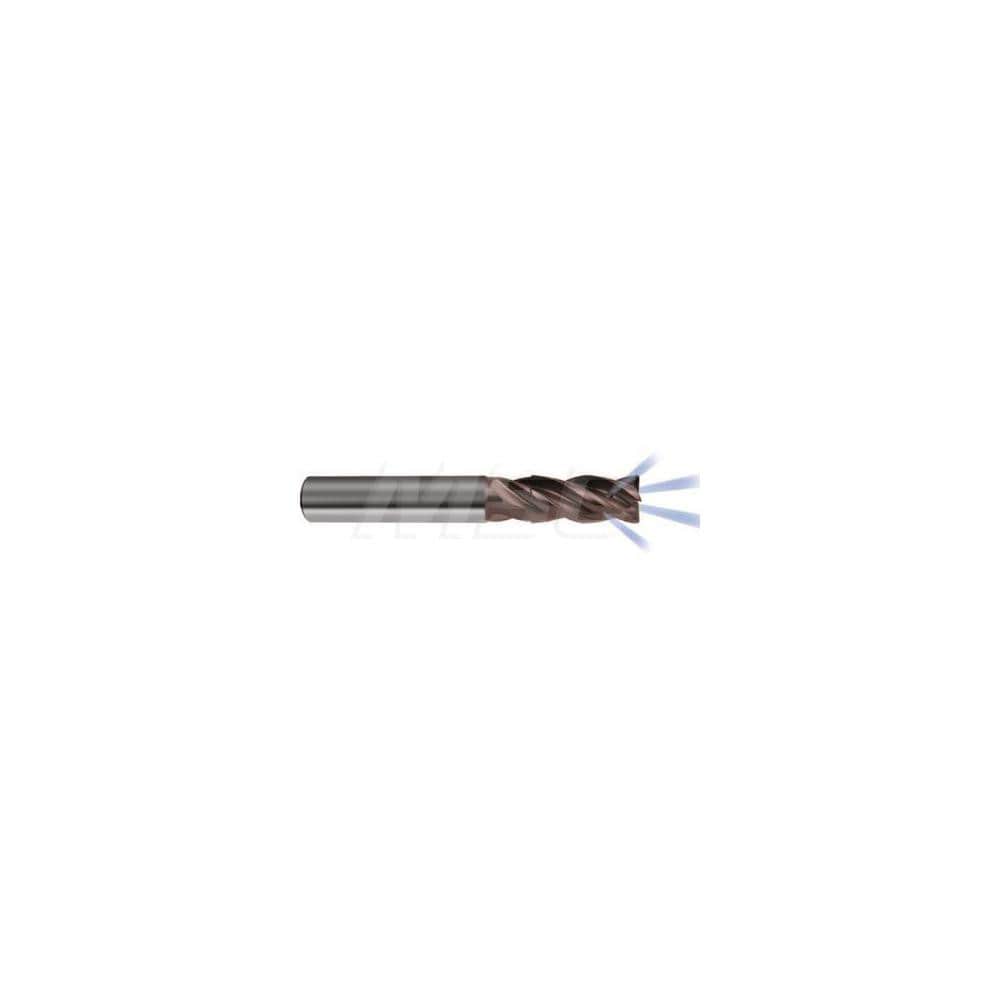

Corner Chamfer End Mill: 12.00 mm Dia, 26.00 mm LOC, 4 Flute, Solid Carbide
Item #: 48081053
Brand: Guhring
Model #: 9068010120000
Product Specifications
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 26.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | nano-Si |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 83.00 |
| Coolant Through | No |
| Pitch | Normal |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 12.00 |
| Neck Diameter (mm) | 11.50 |
| Reach Length (mm) | 36.00 |
| Mill Diameter Tolerance | h10 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Series | 6801 |
| For Use With. | End Mill Holders |
| Helix Style | Variable |
