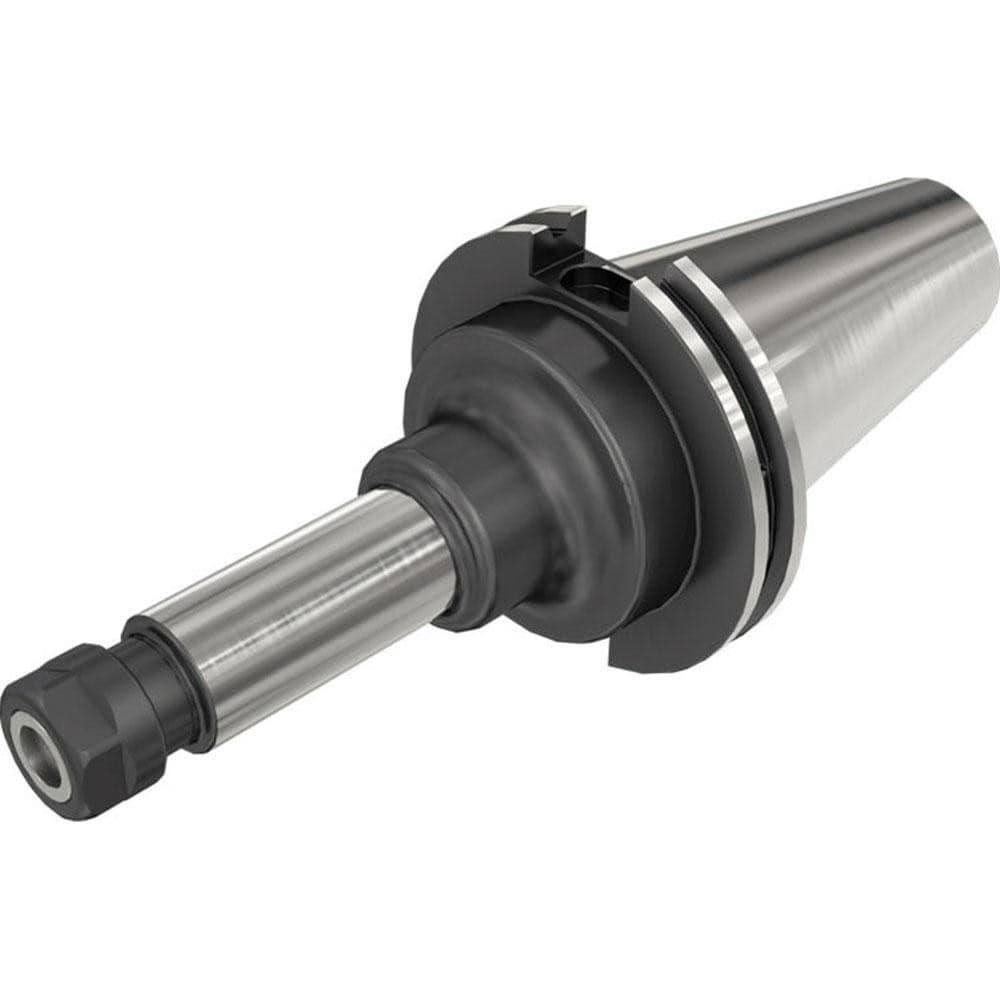

Collet Chuck: 0.0410 to 0.6320" Capacity, Full Grip Collet, 1.5748" Shank Dia, Taper Shank
Item #: 36516789
Brand: Tungaloy
Model #: 4501555
Product Specifications
| Collet System | Full Grip |
| Collet Series | ER25 |
| Shank Type | Taper |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 4.0000 in |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0410 |
| Maximum Collet Capacity (Decimal Inch) | 0.6320 |
| Overall Length (Decimal Inch) | 4 |
| Actuator Type | Wrench |
| Dual Contact | No |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.6540 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Material | Steel |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.6540 |
| UNSPSC Code | 27112808 |
