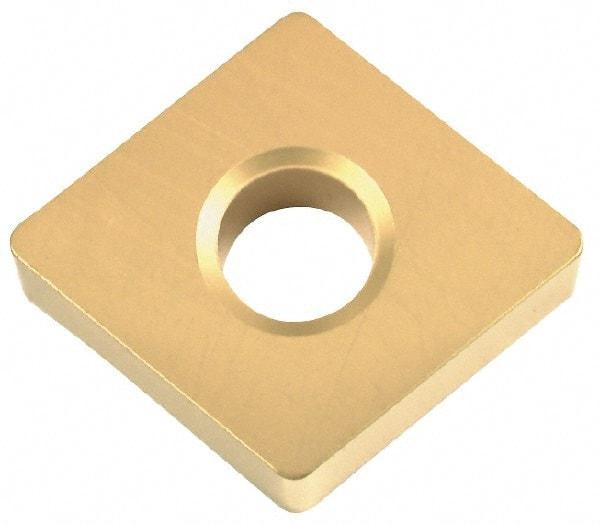

Sumitomo - CPMX2.51.50.5 Grade DA2200 Polycrystalline Diamond (PCD) Turning Insert - 80° Diamond, 5/16" Inscr Circle, 3/32" Thick, 0.0078" Corner Radius
Item #: 02254043
Brand: Sumitomo
Model #: 16CD729
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | CPMX |
| Insert Size | 2.51.50.5 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (mm) | 7.94 |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Manufacturer's Grade | DA2200 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 11 |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
