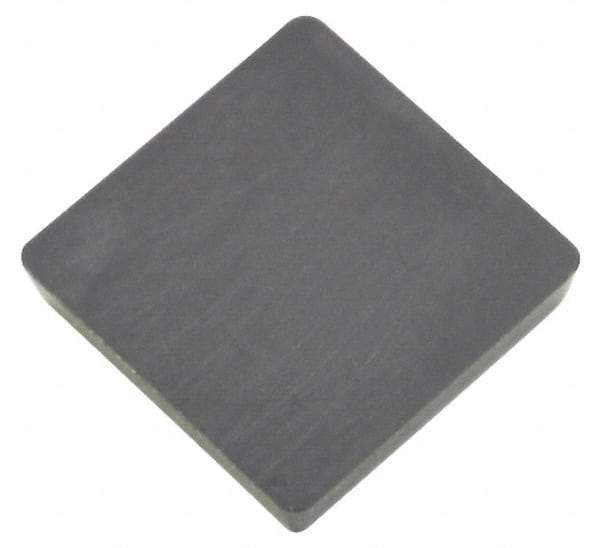

Sumitomo - SPG422 Grade DA2200 Polycrystalline Diamond (PCD) Turning Insert - 90° Square, 1/2" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 02253789
Brand: Sumitomo
Model #: 16CD344
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | SPG |
| Insert Size | 422 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | DA2200 |
| Rake | Neutral |
| Rake Angle | 0 |
| Relief Angle | 11 |
| Included Angle | 90 |
| Insert Holding Method | Clamp |
| Shape | Square |
