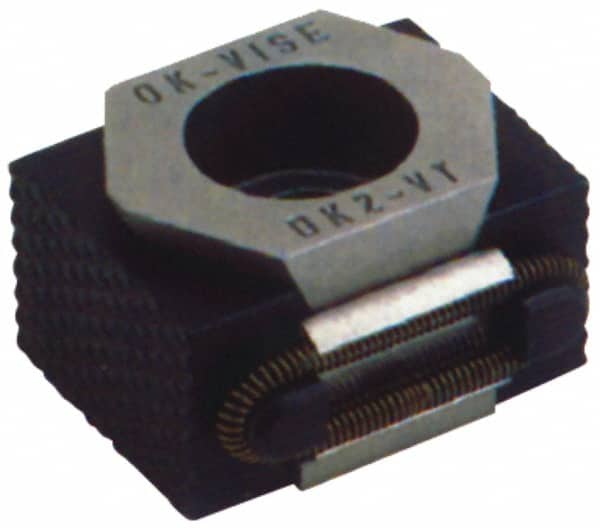

Wedge Clamps; Wedge Clamp Style: Vise; Single or Double Wedge: Single; Screw Thread Size: 1/2-13 in; Machinable: No; Holding Force: 6613.87 lb; Overall Width: 41.91 mm; 1.65 in; Base Height: 0.87 in; 22.1 mm; Base Width: 41.91 mm; 1.65 in; Base Depth: 29.
Item #: 02003978
Brand: Yuasa
Model #: 215-002
Product Specifications
| Wedge Clamp Style | Vise |
| Single or Double Wedge | Single |
| Screw Thread Size | 1/2-13 in |
| Machinable | No |
| Holding Force | 6613.87 lb |
| Overall Width | 41.91 mm; 1.65 in |
| Base Height | 0.87 in; 22.1 mm |
| Base Width | 41.91 mm; 1.65 in |
| Base Depth | 29.97 mm; 1.18 in |
| Jaw Hardness | 48 to 52 |
| Minimum Jaw Spread | 41.91 mm; 1.65 in |
| Maximum Jaw Spread | 1.93 in; 49.02 mm |
| Projection From Base | 4.06 mm; 0.16 in |
| Base Height (mm) | 22.10 |
| Base Width (mm) | 41.91 mm; 1.65 in; 41.91 |
| Base Depth (mm) | 29.97 |
| Minimum Jaw Spread (mm) | 41.91 |
| Optimum Jaw Spread (mm) | 44.96 |
| Optimum Jaw Spread (Decimal Inch) | 1.7700 |
| Maximum Jaw Spread (mm) | 49.02 |
| Projection From Base (mm) | 4.06 |
| Overall Width (mm) | 41.91 mm; 1.65 in; 41.91 |
| Includes | Mounting Screw |
