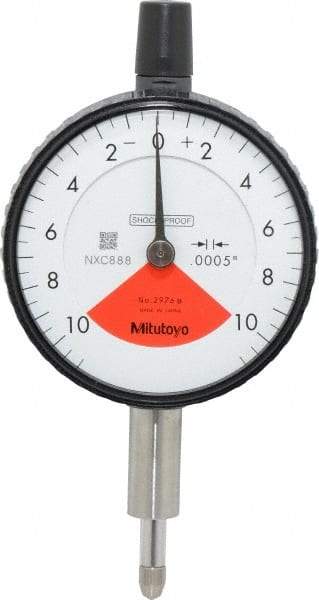

Mitutoyo - 0.02" Range, 10-0-10 Dial Reading, 0.0005" Graduation Dial Drop Indicator - 2-3/16" Dial, 0.028" Range per Revolution, 0.0005" Accuracy
Item #: 01975416
Brand: Mitutoyo
Model #: 2976TB
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Measurement (Decimal Inch) | 0.0200 |
| Dial Graduation (Decimal Inch) | 0.000500 |
| Dial Reading | 10-0-10 |
| Dial Diameter (Inch) | 2-3/16 |
| Dial Diameter (Decimal Inch) | 2.1900 |
| Accuracy (Decimal Inch) | 0.000500 |
| Dial Color | White |
| Measuring Force (N) | 1.40 |
| Range Per Revolution (Decimal Inch) | 0.0280 |
| Revolution Counter | No |
| Stem Diameter (Inch) | 3/8 |
| Back Type | Flat |
