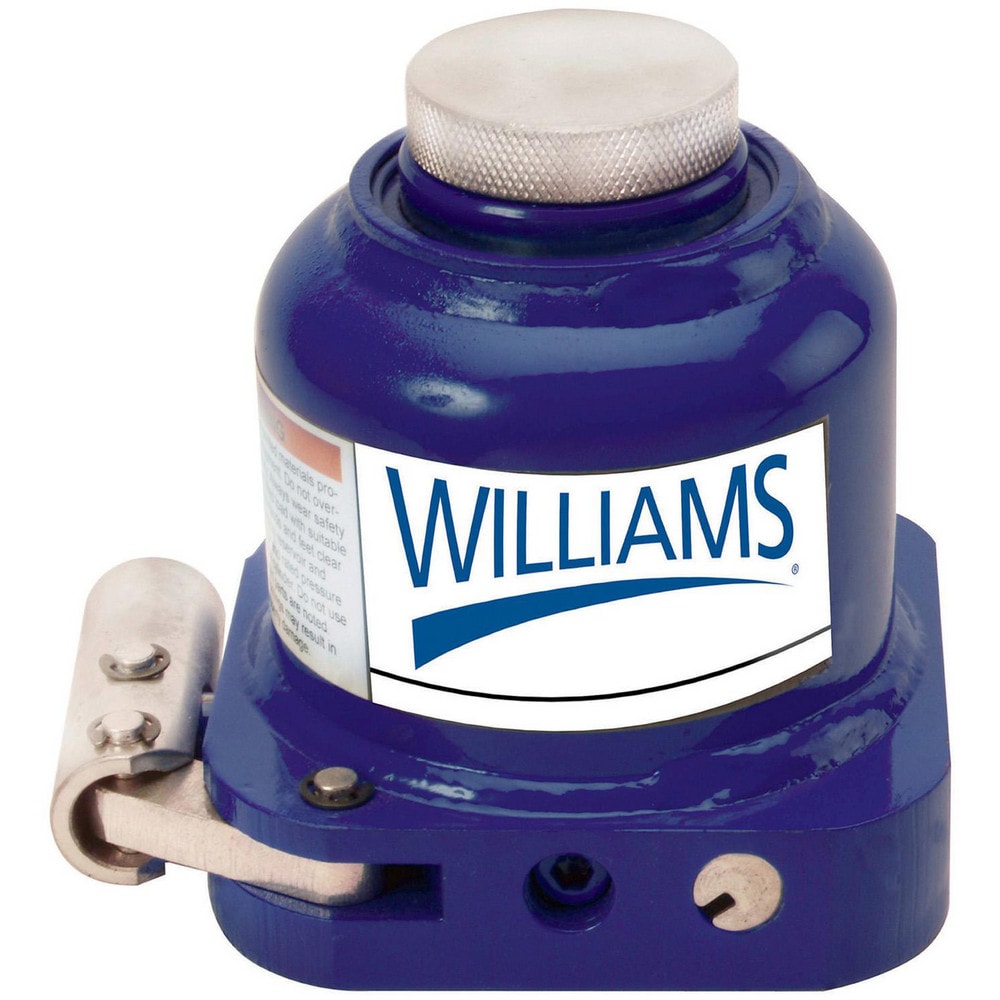

Manual Bottle, Screw, Ratchet & Hydraulic Jacks; Jack Type: Hydraulic Bottle Jack; Load Capacity (Tons): 10; Minimum Height (Decimal Inch): 4.7500; Maximum Height (Inch): 6-1/4; Screw Size: 3.00; Base Diameter (Decimal Inch): 4.8800
Item #: 77743045
Brand: Williams
Model #: JHW3M10T160
Product Specifications
| Jack Type | Hydraulic Bottle Jack |
| Load Capacity (Tons) | 10 |
| Minimum Height (Decimal Inch) | 4.7500 |
| Maximum Height (Inch) | 6-1/4 |
| Screw Size | 3.00 |
| Base Diameter (Decimal Inch) | 4.8800 |
| Base Width (Inch) | 4-3/8 |
| Base Length (Decimal Inch) | 6.2500 |
| Piston Stroke (Decimal Inch) | 1.6300 |
| Plunger Diameter (Decimal Inch) | 2.0000 |
| Screw Diameter (Decimal Inch) | 0.2500 |
| Power Raise (Decimal Inch) | 1.6300 |
| Screw | 3 |
| Set Screw Size | None |
| Material | Cast Iron |
| UNSPSC Code | 24101612 |
| Country of Origin | Taiwan |
