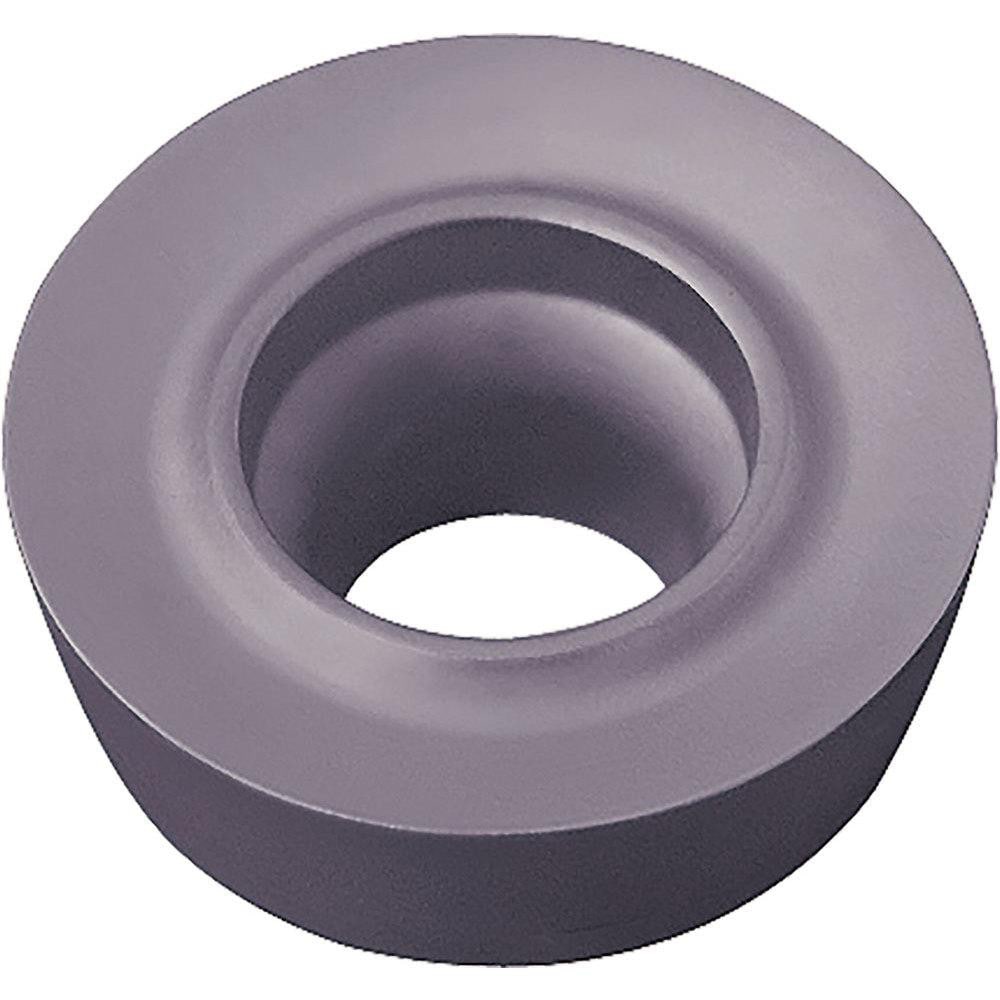

Milling Insert: RPMT10T3M0EN-GH PR1825, Carbide
Item #: 86524717
Brand: Kyocera
Model #: TLT00160
Product Specifications
| Insert Style | RPMT |
| Insert Size | 10T3 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Thickness (mm) | 3.9700 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 11.000 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Inscribed Circle (mm) | 10.00 |
| Insert Hand | Neutral |
| Series | MRX Radius Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.5000 |
| Hole Diameter (Decimal Inch) | 0.1378 |
| Rake | Positive |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | RPMT10T3M0ENGHPR1825 |
| Iso Code | RPMT10T3M0EN-GH |
| Manufacturers Catalog Number | RPMT10T3M0ENGHPR1825 |
| Chip Breaker | M0EN-GH |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 0.3937 |
| Width (mm - 2 Decimals) | 10.00 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
