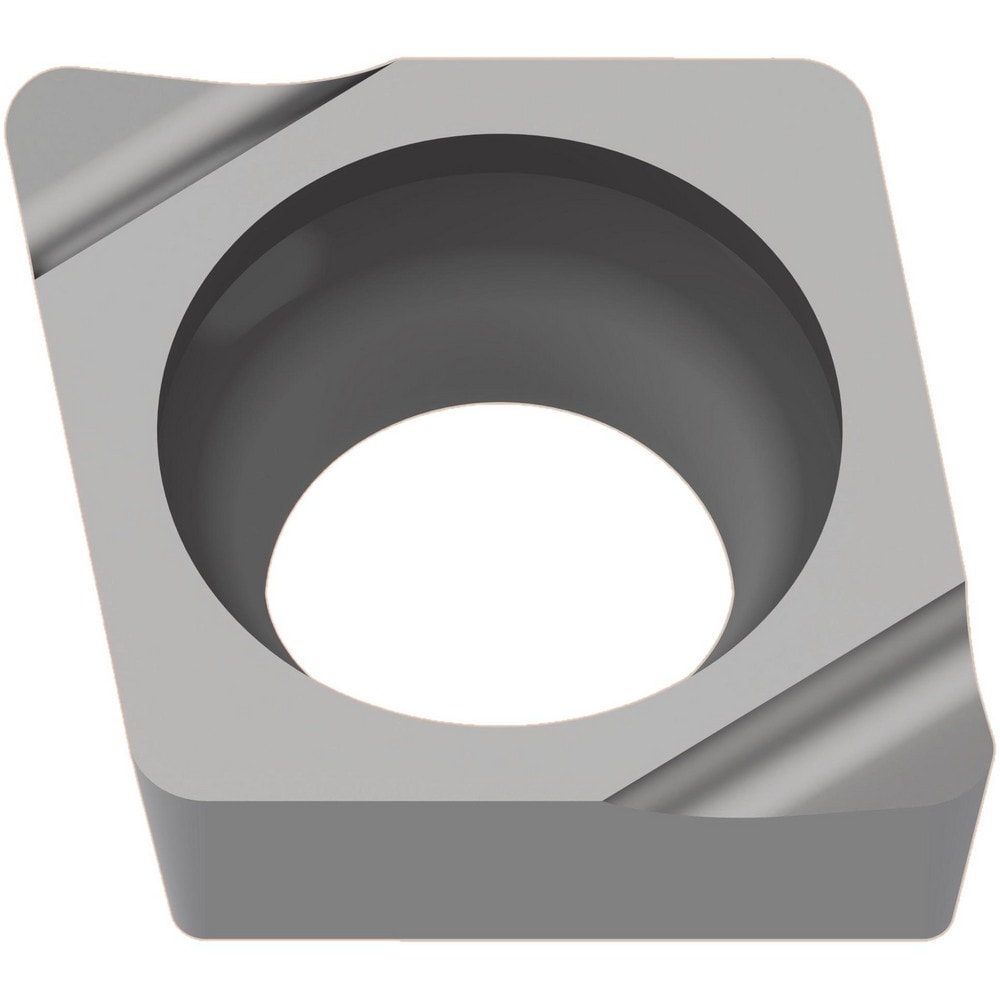

Boring Inserts; Insert Style: CCGT; Insert Size Code: 1.2; Insert Material: Carbide; Manufacturer Grade: MS6015; Inscribed Circle (Inch): 9/64
Item #: 88439237
Brand: Mitsubishi
Model #: 10592823
Product Specifications
| Insert Style | CCGT |
| Insert Size Code | 1.2 |
| Insert Material | Carbide |
| Manufacturer Grade | MS6015 |
| Inscribed Circle (Inch) | 9/64 |
| Inscribed Circle (mm) | 3.57 |
| Inscribed Circle (Decimal Inch) | 0.1406 |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 7.000 |
| Chipbreaker | F |
| Included Angle | 80 |
| Insert Shape | Rhombic |
| Number Of Cutting Edges | 2 |
| Coating/Finish | PVD |
| UNSPSC Code | 23242105 |
| Country of Origin | Japan |
