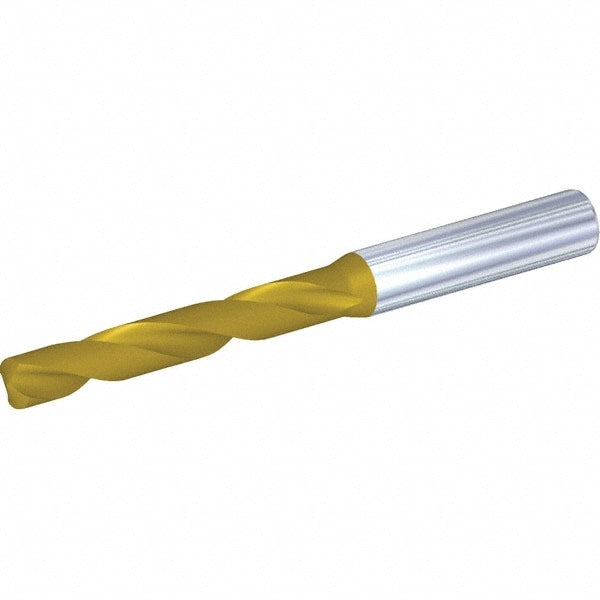

Screw Machine Length Drill Bit: 2.10 mm Dia, 140 deg Point, Solid Carbide
Item #: 58510140
Brand: Kennametal
Model #: 4151643
Product Specifications
| Drill Bit Size (mm) | 2.10 |
| Drill Bit Size (Decimal Inch) | 0.0827 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 58.00 |
| Overall Length (Decimal Inch) | 2.2835 |
| Shank Diameter (mm) | 4.00 |
| Series | B041A-CPG |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | TiN (Tip) |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.3937 |
| Maximum Drilling Depth (mm) | 10.00 |
| Shank Length (Decimal Inch) | 1.1024 |
| Shank Length (mm) | 28.00 |
| Drill Point Length (mm) | 0.33 |
| Drill Point Length (Decimal Inch) | 0.0130 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm; -0.0006 to 0.0000 in |
| Flute Length (Decimal Inch) | 0.5118 |
| Flute Length (mm) | 13.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Drill Bit Size Range (mm) | 0.00 - 3.50 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| UNSPSC Code | 23241635 |
| Drill Bit Size (mm) | 2.10 |
| Drill Bit Size (Decimal Inch) | 0.0827 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 58.00 |
| Overall Length (Decimal Inch) | 2.2835 |
| Shank Diameter (mm) | 4.00 |
| Series | B041A-CPG |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | TiN (Tip) |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.3937 |
| Maximum Drilling Depth (mm) | 10.00 |
| Shank Length (Decimal Inch) | 1.1024 |
| Shank Length (mm) | 28.00 |
| Drill Point Length (mm) | 0.33 |
| Drill Point Length (Decimal Inch) | 0.0130 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm; -0.0006 to 0.0000 in |
| Flute Length (Decimal Inch) | 0.5118 |
| Flute Length (mm) | 13.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Drill Bit Size Range (mm) | 0.00 - 3.50 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
| UNSPSC Code | 23241635 |
| MSC Part # | 58510140 |
| Mfr Part # | 4151643 |
| Country of Origin Country of Origin is subject to change | Germany |
