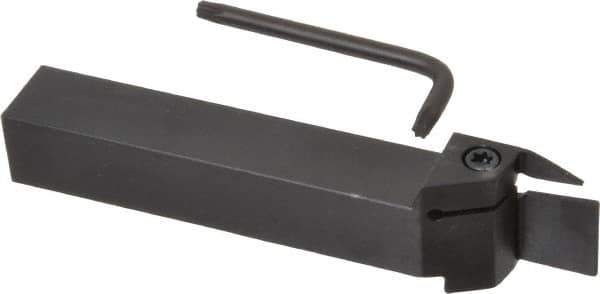

Kennametal - External Thread, 0.67" Max Depth of Cut, 0.079" Min Groove Width, 5" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, A4..02.. Insert Style, A4SM Toolholder Style, Series A4
Item #: 01762061
Brand: Kennametal
Model #: 2976497
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6700 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Series | A4 |
| Toolholder Style | A4SM |
| Insert Compatibility | A4..02.. |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.1800 |
| Head Length (Decimal Inch) | 1.3400 |
| Shank Length (Decimal Inch) | 3.6220 |
| Shank Length (mm) | 92.00 |
