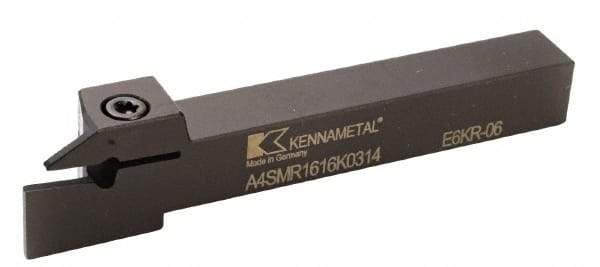

Kennametal - 1.0236" Max Depth of Cut, 6mm Min Groove Width, 170mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 32mm Shank Height x 63/64" Shank Width, A4..06.. Insert Style, A4SM Toolholder Style, Series A4
Item #: 01723873
Brand: Kennametal
Model #: 2263089
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 26.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0236 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Groove Width (mm) | 6.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Overall Length (mm) | 170.00 |
| Series | A4 |
| Toolholder Style | A4SM |
| Insert Compatibility | A4..06.. |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Inch) | 0.9844 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (mm) | 40.00 |
| Head Height (Decimal Inch) | 1.5748 |
| Head Length (mm) | 45.00 |
| Head Length (Decimal Inch) | 1.7717 |
| Shank Length (Decimal Inch) | 4.9331 |
| Shank Length (mm) | 125.30 |
