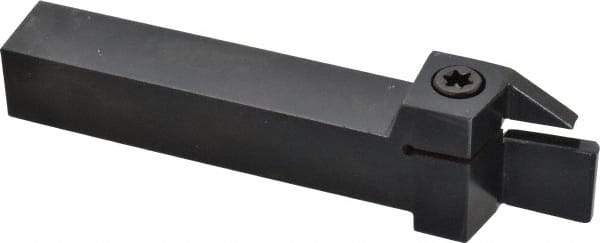

Kennametal - External Thread, 3/4" Max Depth of Cut, 5mm Min Groove Width, 5" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, A4..05.. Insert Style, A4SM Toolholder Style, Series A4
Item #: 01723725
Brand: Kennametal
Model #: 1953327
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7500 |
| Minimum Groove Width (Decimal Inch) | 0.1970 |
| Minimum Groove Width (mm) | 5.00 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Series | A4 |
| Toolholder Style | A4SM |
| Insert Compatibility | A4..05.. |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (mm) | 28.00 |
| Head Height (Decimal Inch) | 1.1000 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5700 |
| Shank Length (Decimal Inch) | 3.4252 |
| Shank Length (mm) | 87.00 |
