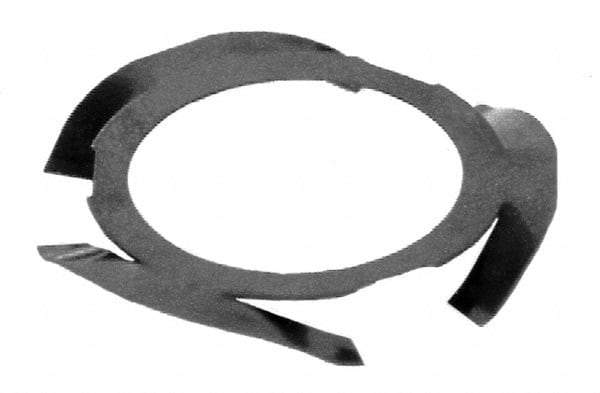

Gardner Spring - 11/16" ID, Grade 1074 Steel, Uncoated Finger Disc Spring - 1.164" OD, 0.009" Thick
Item #: 01692896
Brand: Gardner Spring
Model #: MF1164-009
Exact Tooling IR#: 04
Features and Benefits
Finger disc springs reduce vibration, noise and skidding in high-speed applications.
| Product Specifications | |
|---|---|
| Type | Finger Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.6880 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 1.1640 |
| Thickness (Decimal Inch) | 0.0090 |
| Deflection (Decimal Inch) | 0.0620 |
| Minimum Inside Diameter (Decimal Inch) | 0.6880 |
| Maximum Outside Diameter (Decimal Inch) | 1.1640 |
| Load at Deflection (Lb.) | 41500.00 |
| Minimum Load at Deflection (Lb.) | 9.00 |
| Maximum Load at Deflection (Lb.) | 13.00 |
| Bearing Outside Diameter (Decimal Inch) | 1.1811 |
| Number of Fingers | 3 |
| Finish/Coating | Uncoated |
