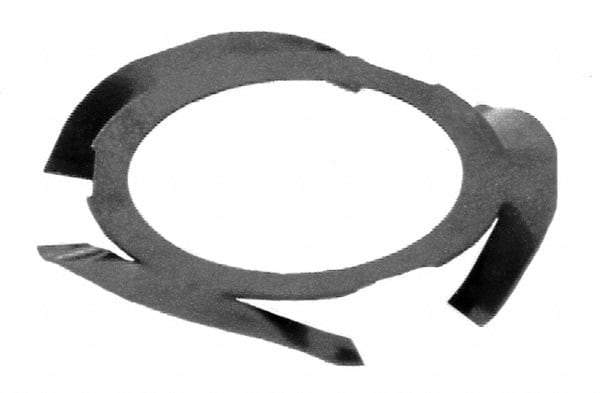

Gardner Spring - 5/16" ID, Grade 1074 Steel, Uncoated Finger Disc Spring - 0.595" OD, 0.01" Thick
Item #: 01692813
Brand: Gardner Spring
Model #: MF0595-010
Exact Tooling IR#: 04
Features and Benefits
Finger disc springs reduce vibration, noise and skidding in high-speed applications.
| Product Specifications | |
|---|---|
| Type | Finger Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.3120 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.5950 |
| Thickness (Decimal Inch) | 0.0100 |
| Deflection (Decimal Inch) | 0.0620 |
| Minimum Inside Diameter (Decimal Inch) | 0.3120 |
| Maximum Outside Diameter (Decimal Inch) | 0.5950 |
| Load at Deflection (Lb.) | 0.3 to 1 |
| Minimum Load at Deflection (Lb.) | 0.30 |
| Maximum Load at Deflection (Lb.) | 1.00 |
| Bearing Outside Diameter (Decimal Inch) | 0.6299 |
| Number of Fingers | 3 |
| Finish/Coating | Uncoated |
