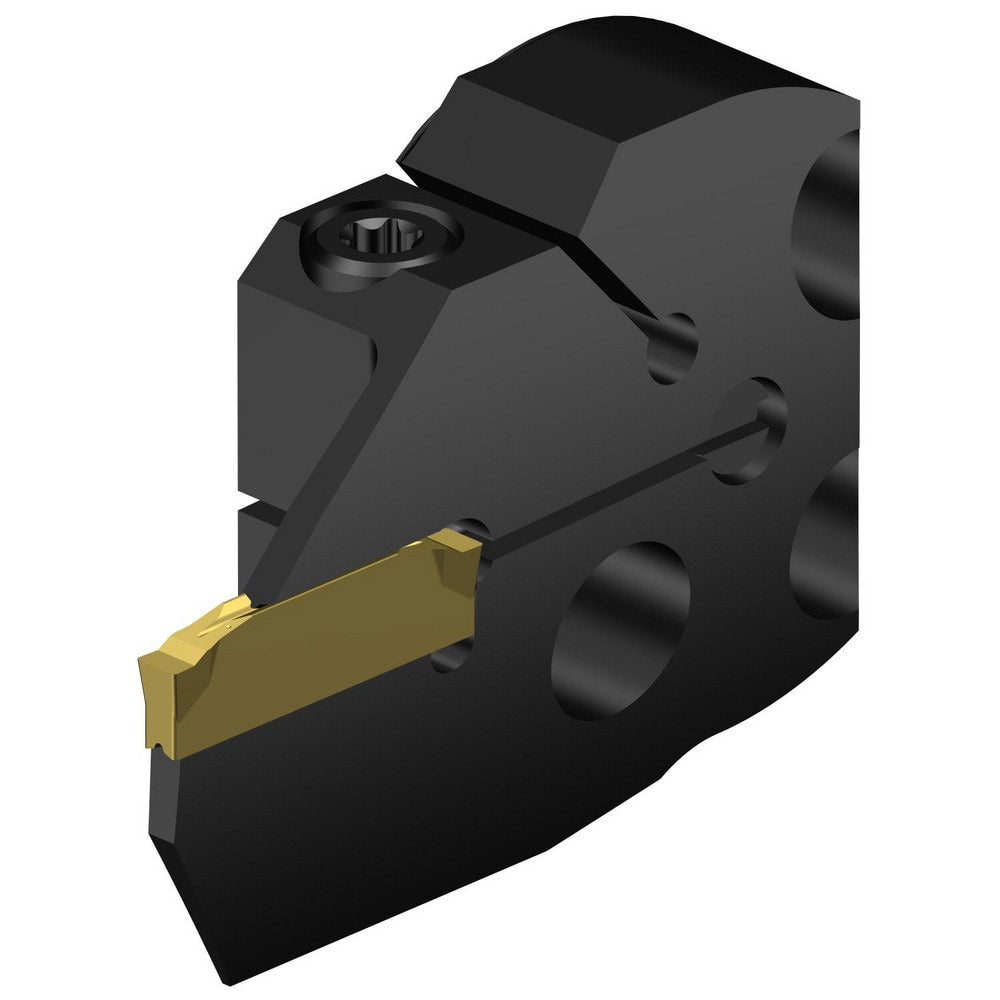

Modular Grooving Cutting Unit Heads; System Size: 32; Maximum Depth of Cut (Decimal Inch): 0.5906; Maximum Depth of Cut (mm): 15.00; Minimum Groove Width (Decimal Inch): 1.4705; Minimum Groove Width (mm): 37.35; Maximum Groove Width (Decimal Inch): 1.4705
Item #: 01652866
Brand: Sandvik Coromant
Model #: 8359182
Product Specifications
| System Size | 32 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Minimum Groove Width (Decimal Inch) | 1.4705 |
| Minimum Groove Width (mm) | 37.35 |
| Maximum Groove Width (Decimal Inch) | 1.4705 |
| Maximum Groove Width (mm) | 37.35 |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | C2I |
| Compatible Insert Size Code | F |
| Series | CoroCut 2 |
| Center to Cutting Edge (mm) | 37.35 |
| Center to Cutting Edge (Decimal Inch) | 1.4705 |
| Blade Style Compatibility | None |
| Complete Insert Compatibility | CoroCut 2 -size F (C2I-F2-0250-) |
| Applications | Face Grooving |
| Head Length Projection (Decimal Inch) | 0.5512 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 14.00 |
| UNSPSC Code | 27112809 |
