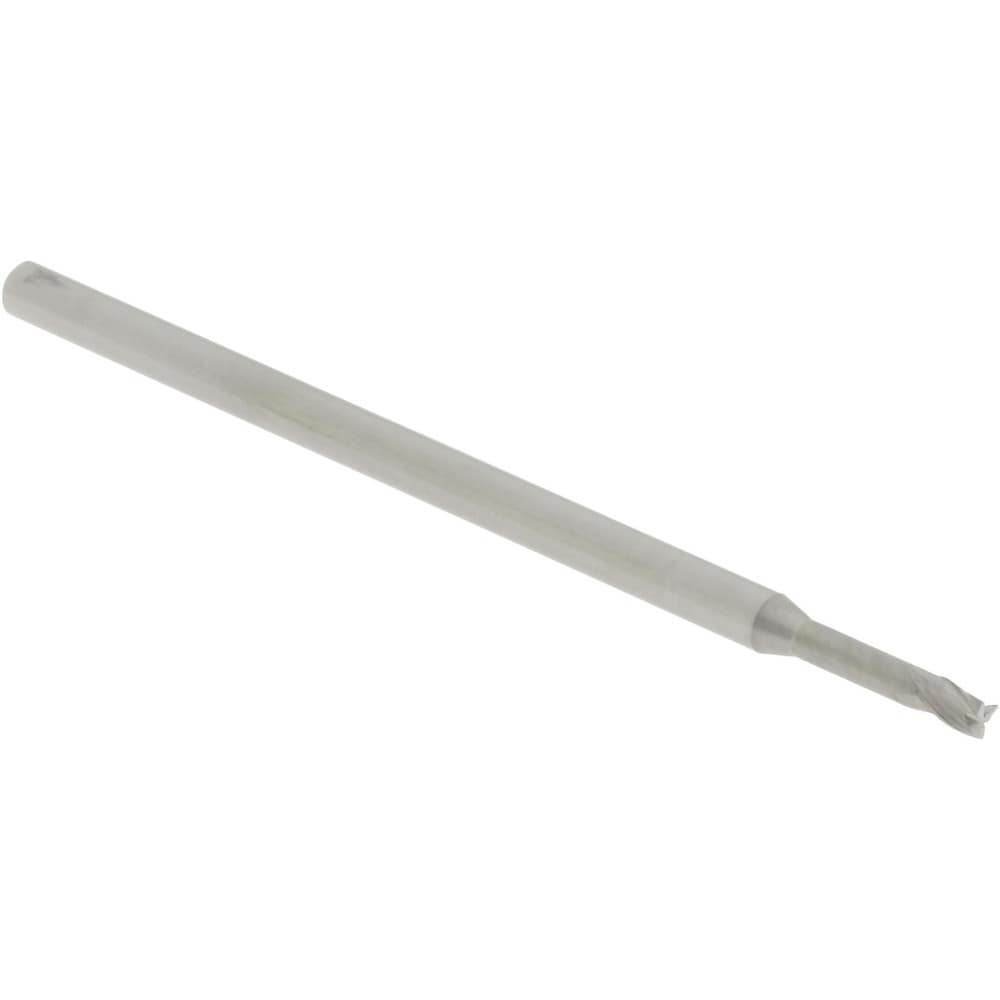

Square End Mill: 0.0850" Dia, 0.1270" LOC, 3 Flute, Solid Carbide
Item #: 58747031
Brand: Accupro
Model #: 15023872
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0850 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.1270 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 30 |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Reach Length (Decimal Inch) | 0.4250 |
| Length Of Cut Range (Decimal Inch) | 0.1000 - 0.2000 |
| Mill Diameter Tolerance | +0.0000/-0.0010 in |
| Shank Diameter Tolerance | -0.0001/-0.0003 in |
| Series | ASQSC3-CCER |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.0850 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.1270 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 30 |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Reach Length (Decimal Inch) | 0.4250 |
| Length Of Cut Range (Decimal Inch) | 0.1000 - 0.2000 |
| Mill Diameter Tolerance | +0.0000/-0.0010 in |
| Shank Diameter Tolerance | -0.0001/-0.0003 in |
| Series | ASQSC3-CCER |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 58747031 |
| Mfr Part # | 15023872 |
| Big Book Page # | 444 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
