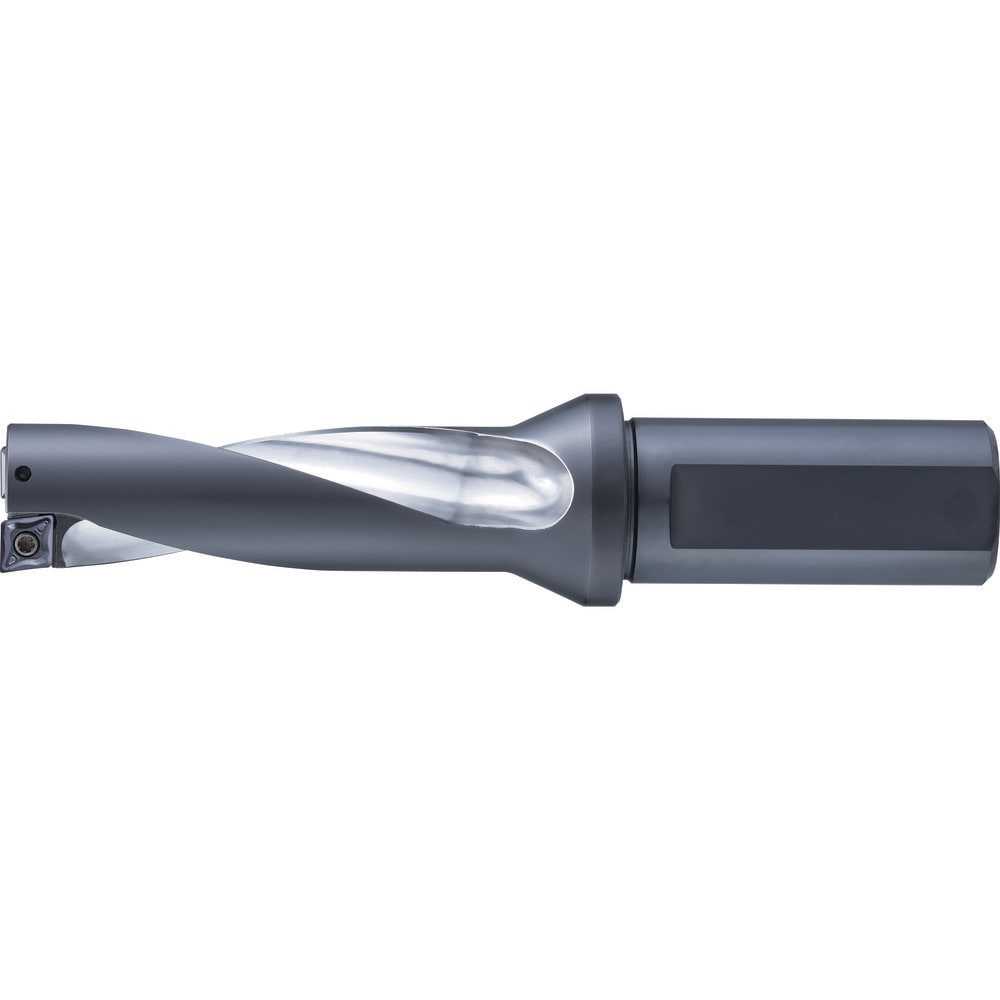

Indexable Insert Drill: PDZ1375FS150A09-3D, 1-3/8" Max Dia, 4-1/8" Max Depth, 3xD, 1-1/2" Shank Dia
Item #: 62087341
Brand: OSG
Model #: 52514013
Product Specifications
| Compatible Drill Style | PDZ |
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.3750 |
| Maximum Drill Depth (Inch) | 4-1/8 |
| Maximum Drill Depth (Decimal Inch) | 4.1250 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | ZPNT |
| Compatible Insert Size Code | 090404 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 7.7860 |
| Series | 52514 |
| Flute Length (Decimal Inch) | 4.1250 |
| Body Length | 197.76 |
| Body Length (Decimal Inch) | 5.0300 |
| Shank Length (Decimal Inch) | 2.7560 |
| Tool Application | Drilling; Plunging; Counterboring |
| Tool Performance | High Performance |
| UNSPSC Code | 23291545 |
| Insert Compatibility | ZPNT090404 |
| Collar Diameter (Decimal Inch) | 1.3750 |
| Coolant Through | Yes |
| Compatible Drill Style | PDZ |
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.3750 |
| Maximum Drill Depth (Inch) | 4-1/8 |
| Maximum Drill Depth (Decimal Inch) | 4.1250 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | ZPNT |
| Compatible Insert Size Code | 090404 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 7.7860 |
| Series | 52514 |
| Flute Length (Decimal Inch) | 4.1250 |
| Body Length | 197.76 |
| Body Length (Decimal Inch) | 5.0300 |
| Shank Length (Decimal Inch) | 2.7560 |
| Tool Application | Drilling; Plunging; Counterboring |
| Tool Performance | High Performance |
| UNSPSC Code | 23291545 |
| Insert Compatibility | ZPNT090404 |
| Collar Diameter (Decimal Inch) | 1.3750 |
| Coolant Through | Yes |
| MSC Part # | 62087341 |
| Mfr Part # | 52514013 |
| Country of Origin Country of Origin is subject to change | Japan |
