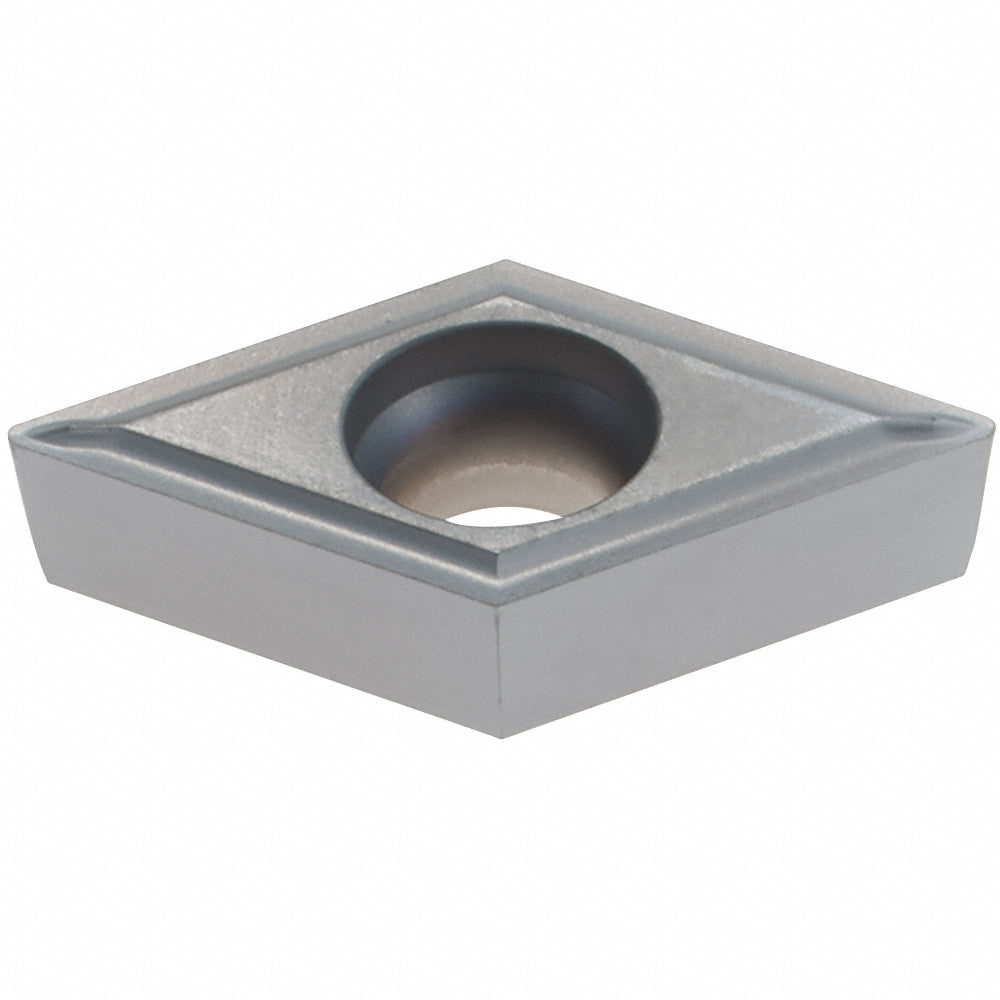

Turning Insert: DCGT32.51FNAM3 QM3, Carbide
Item #: 37288826
Brand: NTK
Model #: 7902151
Product Specifications
| ANSI Insert Code | DCGT32.51 |
| ISO Insert Code | DCGT11T304 |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | QM3 |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | DCGT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1524 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.9140 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 7902151 |
| Material Grade | Micrograin |
| Proprietary Coating Designation | TiCN |
| Coating Classification | PVD |
| Chip Breaker | AM3 |
| Rake Angle | 6 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | DCGT32.51FNAM3 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Boring; Facing; Turning; Back Turning; Boring |
| ANSI Size Code | 32.51 |
| ISO Size Code | 11T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
| ANSI Insert Code | DCGT32.51 |
| ISO Insert Code | DCGT11T304 |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | QM3 |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | DCGT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1524 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.9140 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 7902151 |
| Material Grade | Micrograin |
| Proprietary Coating Designation | TiCN |
| Coating Classification | PVD |
| Chip Breaker | AM3 |
| Rake Angle | 6 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | DCGT32.51FNAM3 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Boring; Facing; Turning; Back Turning; Boring |
| ANSI Size Code | 32.51 |
| ISO Size Code | 11T304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
| MSC Part # | 37288826 |
| Mfr Part # | 7902151 |
