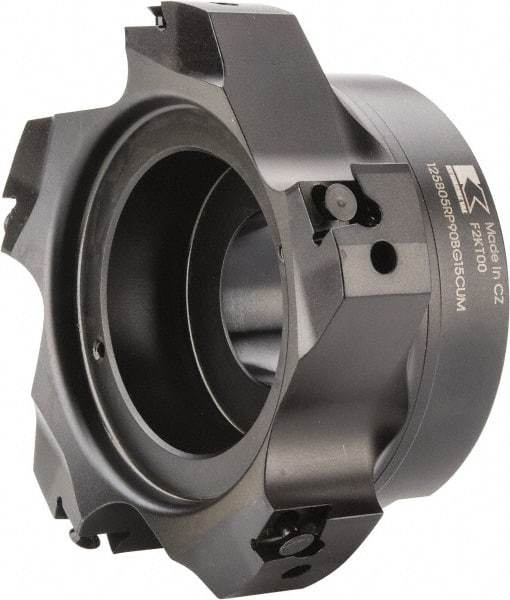

Kennametal - 5 Inserts, 5" Cut Diam, 1-1/2" Arbor Diam, 0.394" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 60.45mm High, BGHX 15L5... Insert Compatibility, Series Fix-Perfect
Item #: 01230523
Brand: Kennametal
Model #: 2235056
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 127.00 |
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 60.45 |
| Overall Height (Decimal Inch) | 2.3800 |
| Insert Compatibility | BGHX 15L5... |
| Series | Fix-Perfect |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Clamp |
| Number of Flutes | 5 |
| Cutting Rake Angle | 24 |
| Rake | Positive |
| Hub Diameter (mm) | 96.77 |
| Hub Diameter (Decimal Inch) | 3.8098 |
| Keyway Width (mm) | 16.26 |
| Keyway Width (Decimal Inch) | 0.6402 |
| Maximum Body Diameter (Decimal Inch) | 4.9410 |
| Maximum RPM | 5010 |
