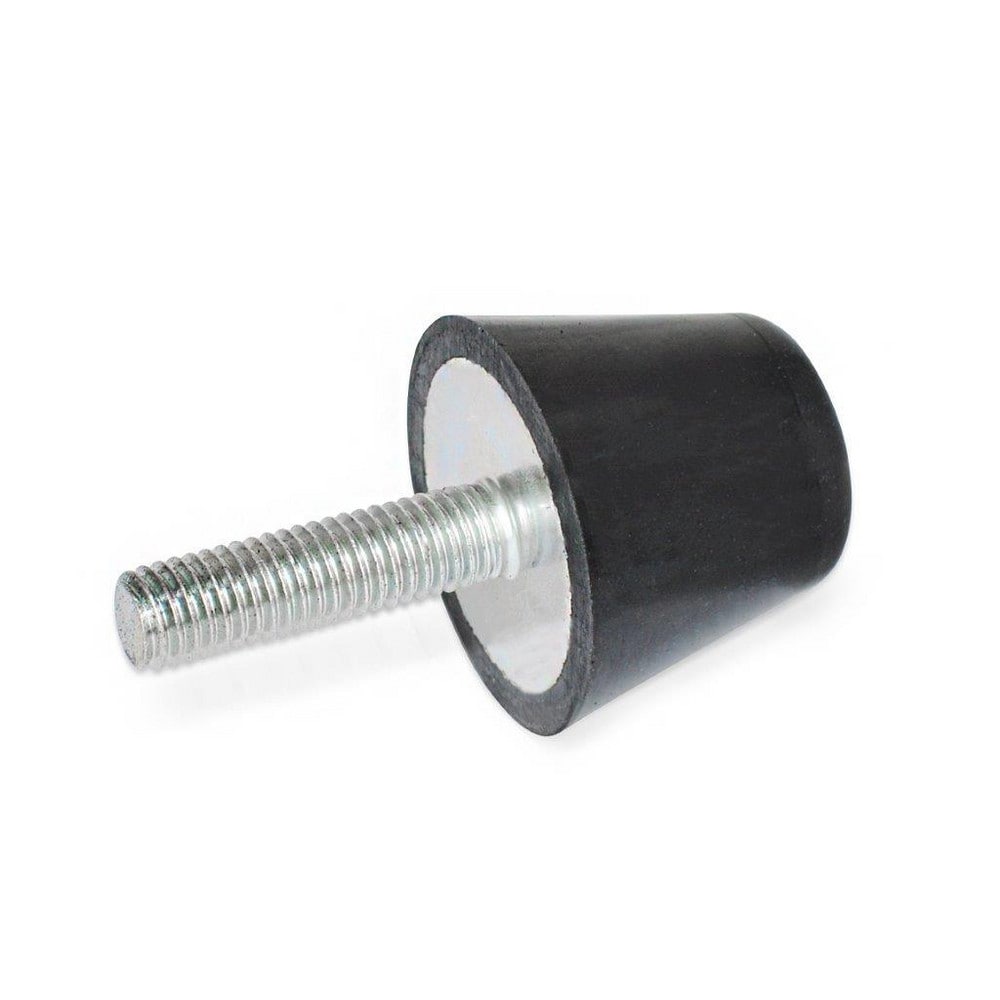

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Perbunan (NBR); Maximum Load Capacity: 1200.00 N; Top Diameter: 38.00; Bottom Diameter: 25; Thread Size: 5/16-18; Overall Width: 38 mm
Item #: 71805824
Brand: J.W. Winco
Model #: 253-38-5/16X18-14.3-55
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 1200.00 N |
| Top Diameter | 38.00 |
| Bottom Diameter | 25 |
| Thread Size | 5/16-18 |
| Overall Width | 38 mm |
| Overall Diameter | 38 mm |
| Thread Length (Decimal Inch) | 0.5600 |
| Deflection | 0.3700 |
| Hardness Rating | Shore 55A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.411 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 46.3 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 1200.00 N |
| Top Diameter | 38.00 |
| Bottom Diameter | 25 |
| Thread Size | 5/16-18 |
| Overall Width | 38 mm |
| Overall Diameter | 38 mm |
| Thread Length (Decimal Inch) | 0.5600 |
| Deflection | 0.3700 |
| Hardness Rating | Shore 55A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.411 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 46.3 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71805824 |
| Mfr Part # | 253-38-5/16X18-14.3-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
