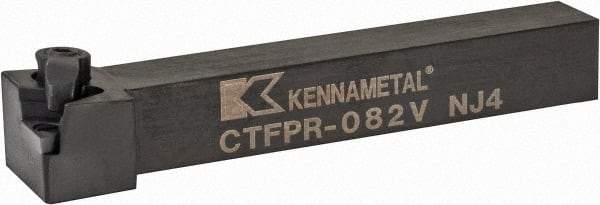

Kennametal - CTFP, Right Hand Cut, 0° Lead Angle, 1/2" Shank Height x 1/2" Shank Width, Positive Rake Indexable Turning Toolholder - 3-1/2" OAL, TP..22. Insert Compatibility, Series Kendex
Item #: 01039676
Brand: Kennametal
Model #: 1097008
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CTFP |
| Rake | Positive |
| Rake Angle | 5 |
| Series | Kendex |
| Lead Angle | 0 |
| Shank Width (Inch) | 1/2 |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Inch) | 1/2 |
| Shank Height (mm) | 12.70 |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (mm) | 88.90 |
| Overall Length (Decimal Inch) | 3.5000 |
| Insert Compatibility | TP..22. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Inch) | 3/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 0.5600 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
