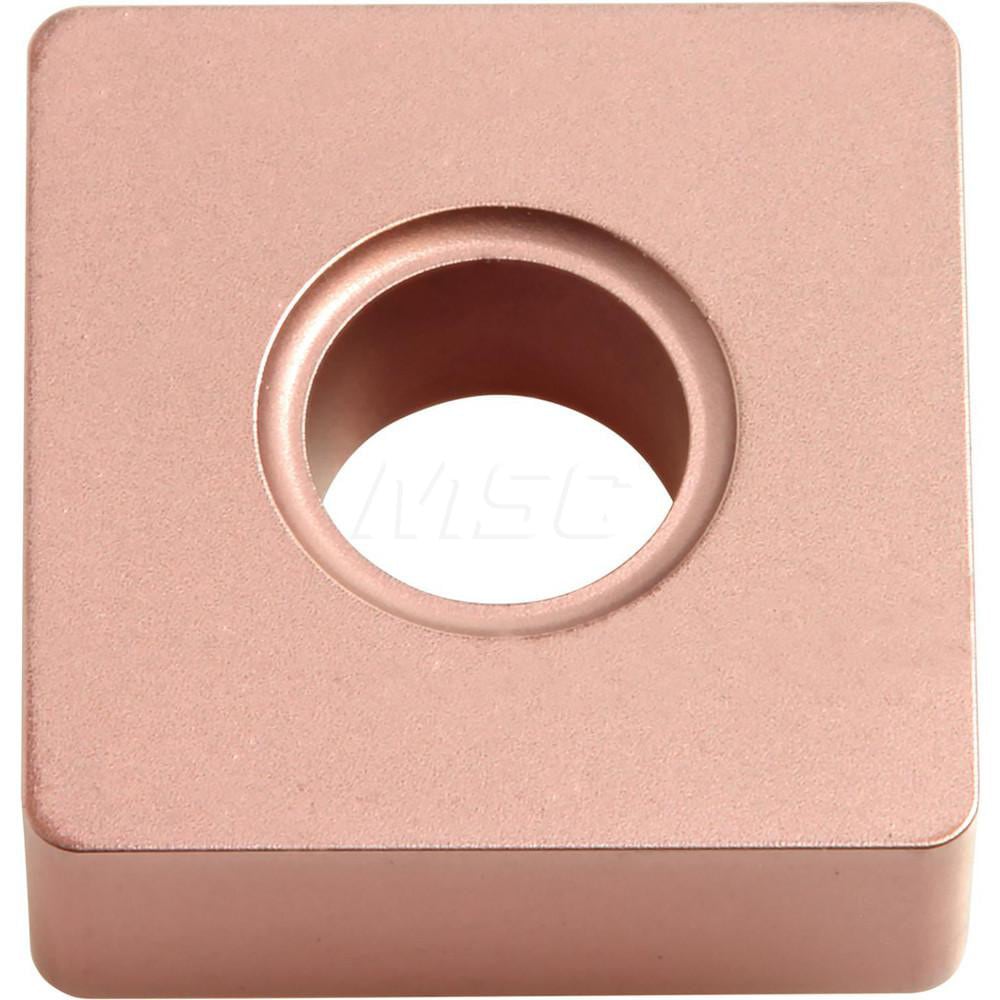

Turning Insert: SNMA434 CA315, Carbide
Item #: 18248476
Brand: Kyocera
Model #: TMD05033
Product Specifications
| ANSI Insert Code | SNMA434 |
| ISO Insert Code | SNMA120416 |
| Relief Angle | 0 |
| Insert Style | SNMA |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Included Angle | 90 |
| Manufacturer Grade | CA315 |
| Coating/Finish | TiCN; Titanium; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | Flat Top |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.2032 |
| Maximum Depth of Cut (Decimal Inch) | 0.1667 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5000 |
| Insert Length (Inch) | 1/2 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | SNMA120416 |
| Manufacturers Catalog Number | TMD05033 |
| Material Grade | K20; K30; K10; K01 |
| Coating Classification | CVD |
| Chip Breaker | Flat Top |
| Industry Standard Number | SNMA434CA315 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
| ANSI Size Code | 434 |
| ISO Size Code | 120416 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 434 |
| ANSI Insert Code | SNMA434 |
| ISO Insert Code | SNMA120416 |
| Relief Angle | 0 |
| Insert Style | SNMA |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Included Angle | 90 |
| Manufacturer Grade | CA315 |
| Coating/Finish | TiCN; Titanium; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | Flat Top |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.2032 |
| Maximum Depth of Cut (Decimal Inch) | 0.1667 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5000 |
| Insert Length (Inch) | 1/2 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | SNMA120416 |
| Manufacturers Catalog Number | TMD05033 |
| Material Grade | K20; K30; K10; K01 |
| Coating Classification | CVD |
| Chip Breaker | Flat Top |
| Industry Standard Number | SNMA434CA315 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
| ANSI Size Code | 434 |
| ISO Size Code | 120416 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 434 |
| MSC Part # | 18248476 |
| Mfr Part # | TMD05033 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
