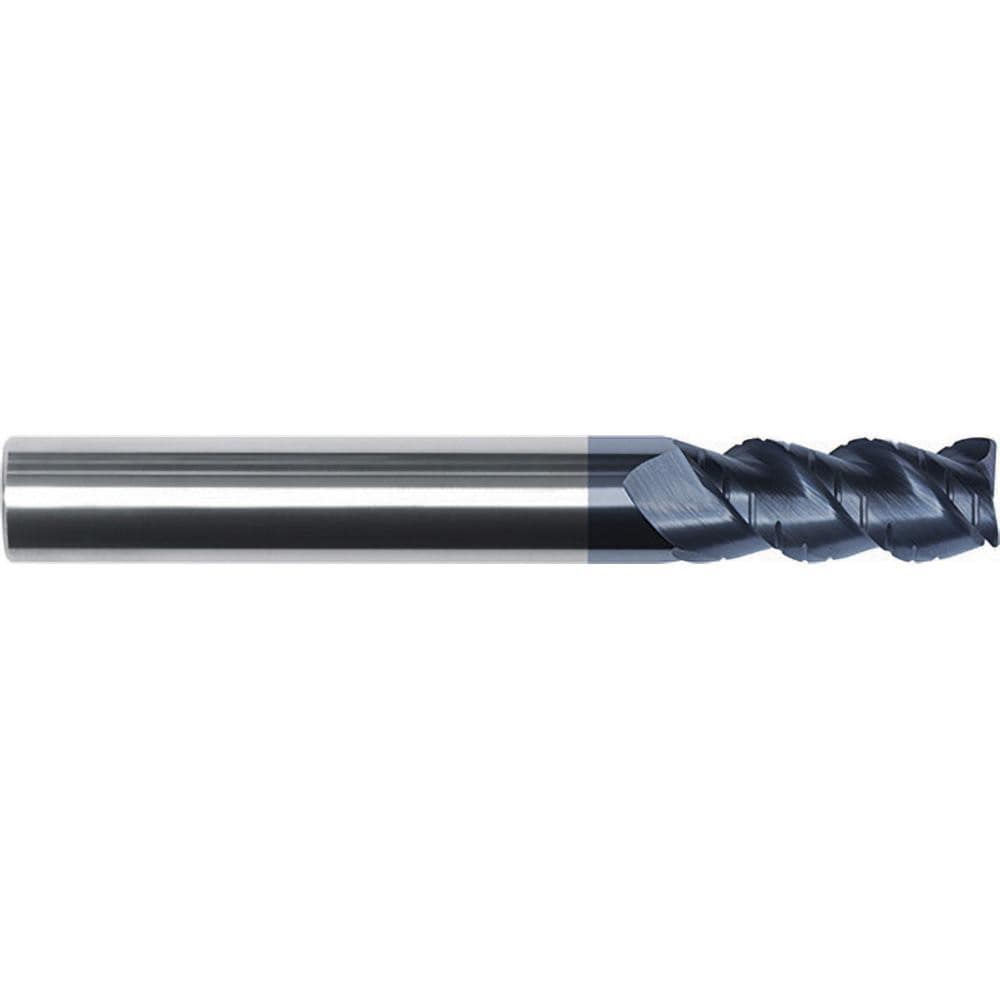

Roughing End Mill: 1/4" Dia, 3 Flute, Variable Pitch, 0.0150" Corner Radius, Single End, Solid Carbide, Chipbreaker
Item #: 60302874
Brand: Internal Tool
Model #: 112-1005
Product Specifications
| Mill Diameter (Fractional Inch) | 1/4 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Pitch | Variable |
| Length of Cut | 1-1/8 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Shank Diameter (Inch) | 1/4 |
| End Type | Corner Radius |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1250 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Type | Straight-Cylindrical |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | Yes |
| Maximum Helix Angle | 50 |
| Minimum Helix Angle | 50 |
| Single Or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Style | High |
| Series | 112 |
| UNSPSC Code | 27112803 |
| Mill Diameter (Fractional Inch) | 1/4 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Pitch | Variable |
| Length of Cut | 1-1/8 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Shank Diameter (Inch) | 1/4 |
| End Type | Corner Radius |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1250 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Type | Straight-Cylindrical |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | Yes |
| Maximum Helix Angle | 50 |
| Minimum Helix Angle | 50 |
| Single Or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Style | High |
| Series | 112 |
| UNSPSC Code | 27112803 |
| MSC Part # | 60302874 |
| Mfr Part # | 112-1005 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
