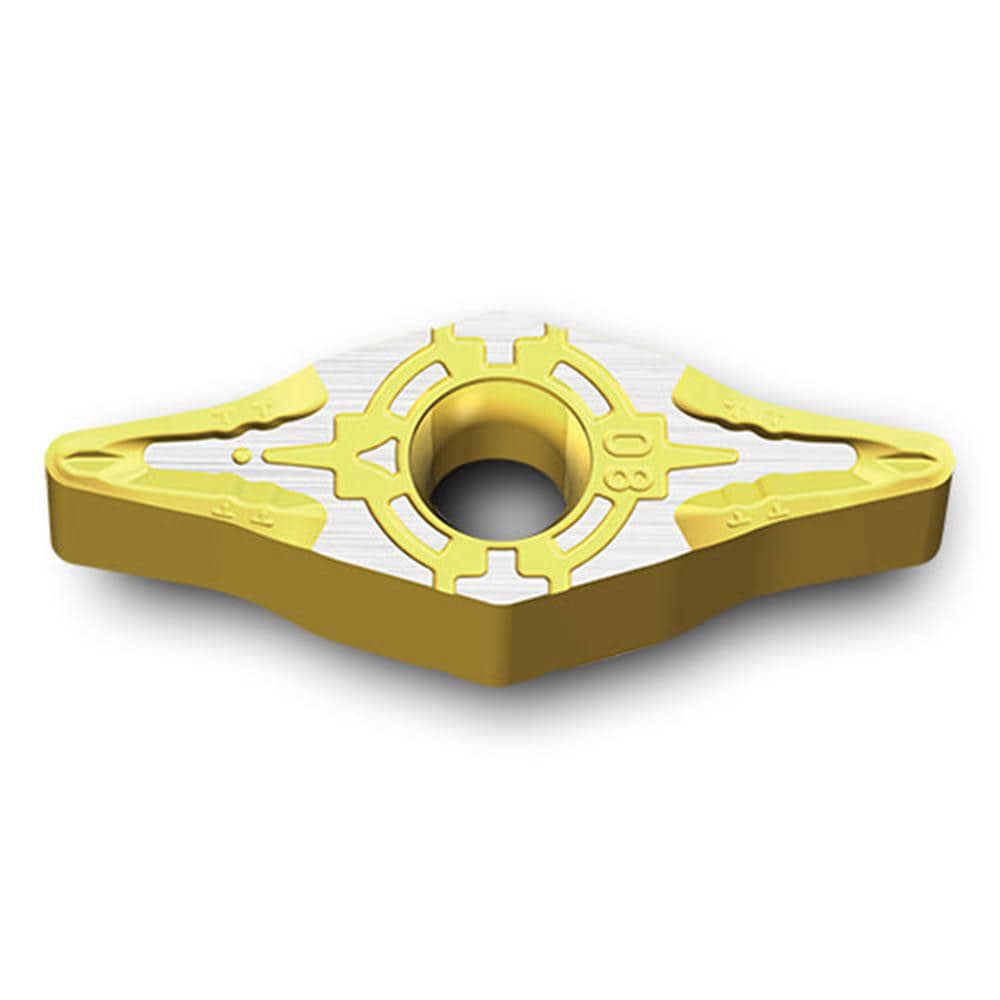

Turning Insert: YNMG2.531FS TT9080, Carbide
Item #: 29815826
Brand: Ingersoll Cutting Tools
Model #: 6170271
Product Specifications
| ANSI Insert Code | YNMG2.531 |
| ISO Insert Code | YNMG |
| Relief Angle | 0 |
| Insert Style | YNMG |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 25 |
| Manufacturer Grade | TT9080 |
| Coating/Finish | AlTiN; TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | YNMG |
| Inscribed Circle (Decimal Inch) | 0.3130 |
| Insert Material | Carbide |
| Insert Shape | Non-ISO Specialty Shapes |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | Y |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.3130 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | YNMG130404FS TT9080 |
| Chip Breaker | FS |
| ANSI Size Code | 2.531 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2.531 |
