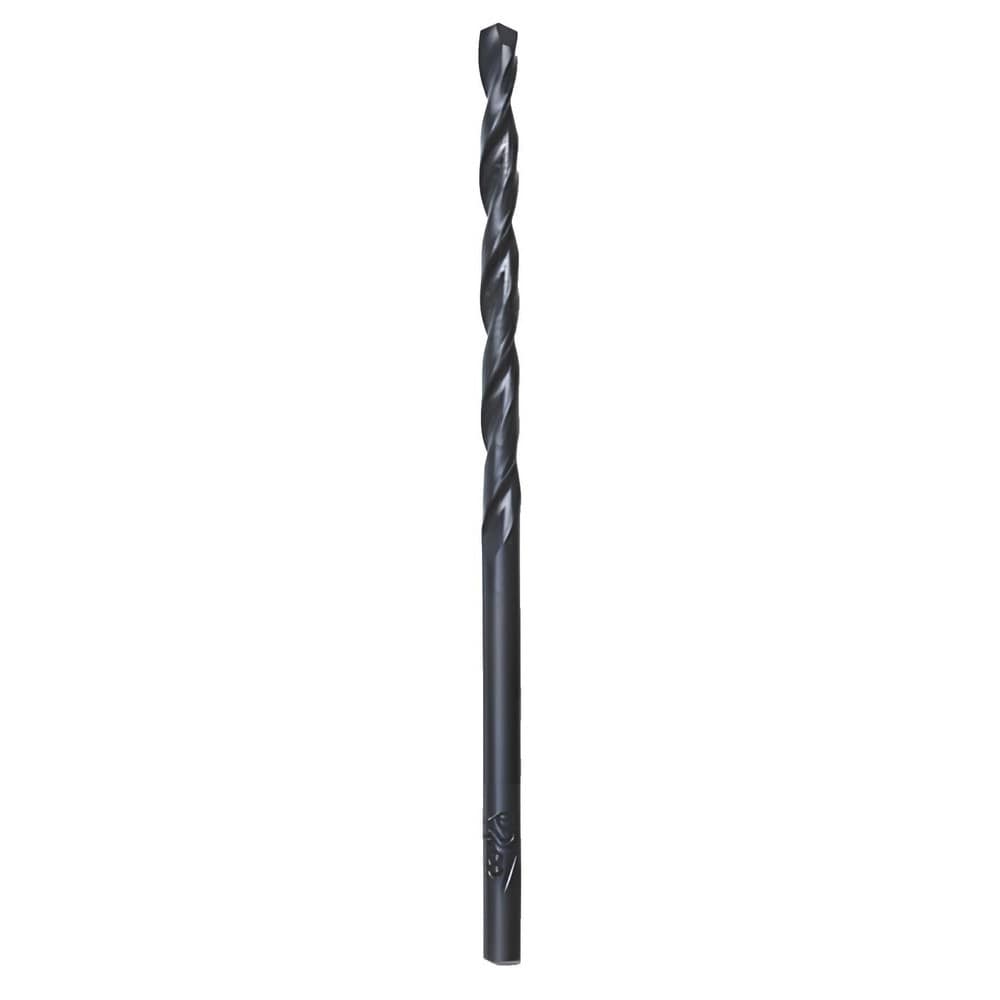

Jobber Drill: 5/64" Dia, 135 deg Point, High Speed Steel
Item #: 42160648
Brand: Milwaukee Tool
Model #: 48-89-2711
Product Specifications
| Drill Bit Size (Inch) | 5/64 |
| Drill Bit Size (Decimal Inch) | 0.0781 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Oxide |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 0.0781 |
| Overall Length (mm) | 50.80 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Spiral Type | Regular |
| Flute Length (mm) | 25.40 |
| Flute Length (Decimal Inch) | 1.0000 |
| Proprietary Coating/Finish | Black Oxide |
| Series | 48-89-27 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 13xD |
| Shank Diameter (Inch) | 5/64 |
| Maximum Drilling Depth (Decimal Inch) | 1.0000 |
| Maximum Drilling Depth (Inch) | 1 |
| Shank Length (Decimal Inch) | 1.0000 |
| Shank Length (Inch) | 1 |
| Number of Flats | 3 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Shank Type | 3-Flat |
| Tool Performance | General Purpose |
| Standards | ANSI |
| Double Margin | No |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
