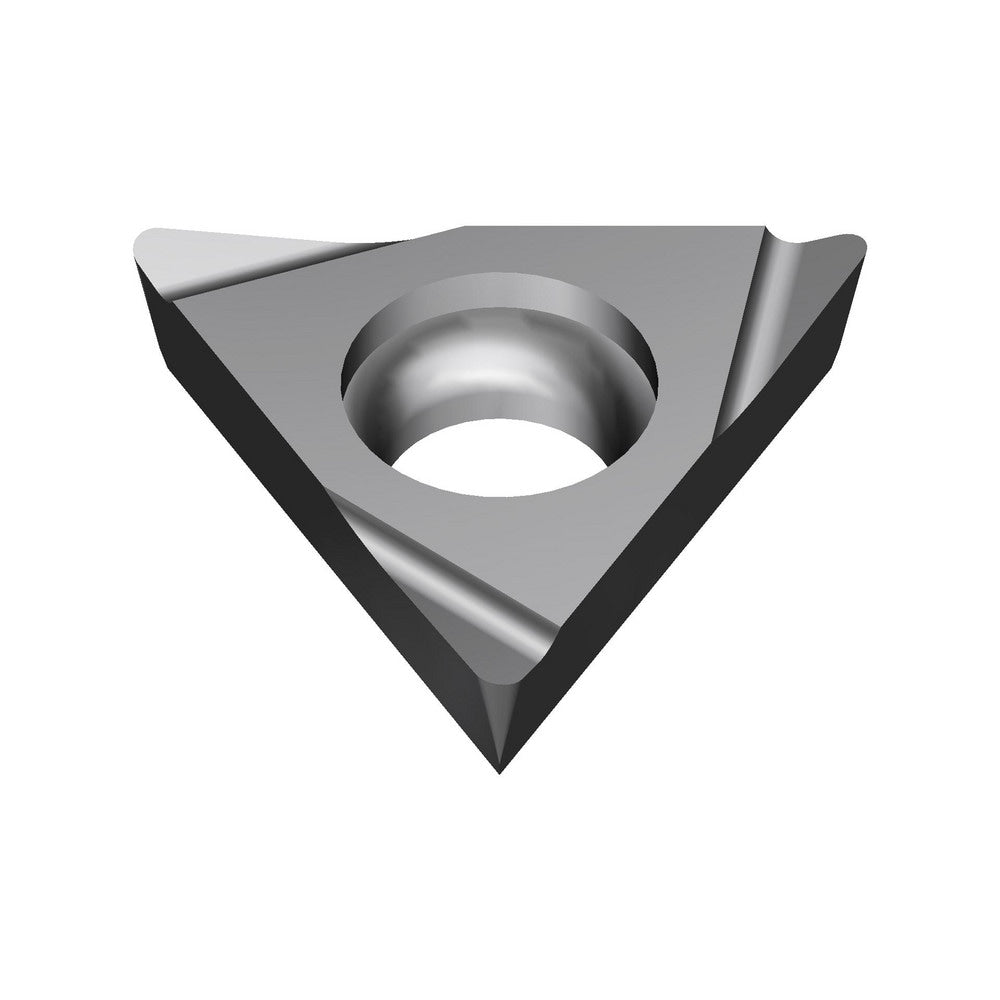

Turning Insert: TPGT181505LFY T1500A, Cermet
Item #: 23219041
Brand: Sumitomo
Model #: 10JTAWK
Product Specifications
| ANSI Insert Code | TPGT1.81.50.5 |
| ISO Insert Code | TPGT |
| Relief Angle | 11 |
| Insert Style | TPGT |
| Corner Radius (mm) | 0.20 |
| Included Angle | 60 |
| Manufacturer Grade | T1500A |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Left Hand |
| Insert Thickness | 2.38 |
| Series | T1500A |
| Inscribed Circle (mm) | 5.56 |
| Insert Material | Cermet |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance |
| Side Clearance | Positive |
| Hole Diameter (Decimal Inch) | 2.8000 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Insert Length (mm) | 9.60 |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material Code | P; K; M |
| Chip Breaker | LFY |
| ANSI Size Code | 1.81.50.5 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1.81.50.5 |
