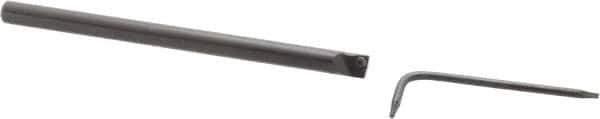

Seco - 0.265" Min Bore Diam, 3" OAL, 1/4" Shank Diam, SCLD Indexable Boring Bar - CD.. 1.2 Insert, Screw Holding Method
Item #: 00546820
Brand: Seco
Model #: 57646
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | SCLD |
| Minimum Bore Diameter (Decimal Inch) | 0.2650 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 3.0000 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Insert Compatibility | CD.. 1.2 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.1400 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Complete Insert Compatibility | CDCB 1.21.20; CDCB 1.21.20.5; CDCB 1.21.21 |
| Toolholder Material | Steel |
