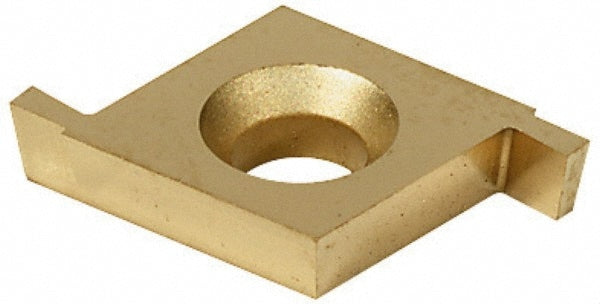

Brand: Widia / Part #: 2824531
Item #: 70730510
Brand: Widia
Model #: 2824531
Product Specifications
| Insert Style | CPG |
| Insert Size Code | 2062 |
| Insert Size | 2062 |
| Insert Material | Carbide |
| Manufacturer Grade | CG5 |
| Cutting Width (Decimal Inch) | 0.0600 |
| Maximum Depth of Cut (Decimal Inch) | 0.0650 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0000 |
| Lead Angle | 80.000 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | CPG |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.2500 |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Ansi Code | CPG2062R |
| Iso Code | CPG2062R |
| Relief Angle | 11 |
| Manufacturers Catalog Number | CPG2062R |
| Insert Thickness (Decimal Inch) | 0.0750 |
| External Relief Angle | 11 |
| Internal Relief Angle | 11 |
| Cut Condition | Stable |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Chip Breaker | None |
| Insert Seat Size | 2 |
| Style | CPG |
| Insert Height (Decimal Inch) | 0.2500 |
| Full Radius | No |
| Coating Classification | PVD |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.6000 |
| Included Angle Degree | 80 |
| Coating/Finish | TiN |
| Number Of Cutting Edges | 2 |
| Single Or Double End | Double |
| For Use With | Grooving Tool Holder |
