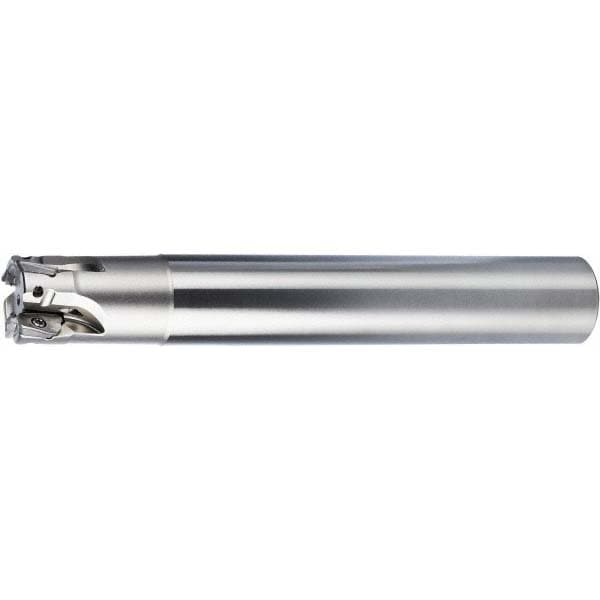

Indexable Square-Shoulder End Mill: PSE11R125SA125-5L, 1-1/4" Cut Dia, 3.543" Max Depth of Cut, 1-1/4" Dia Cylindrical Shank
Item #: 55702310
Brand: OSG
Model #: 7801341
Product Specifications
| Cutting Diameter | 1.2500 in |
| Cutting Diameter | 1-1/4 |
| Overall Length (Decimal Inch) | 7.4800 |
| Maximum Depth of Cut (Decimal Inch) | 3.5430 |
| Cutter Style | PSE |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 78013 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 7.48 |
| Insert Compatibility | ZD_T11... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 5 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| Cutting Diameter | 1.2500 in |
| Cutting Diameter | 1-1/4 |
| Overall Length (Decimal Inch) | 7.4800 |
| Maximum Depth of Cut (Decimal Inch) | 3.5430 |
| Cutter Style | PSE |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 78013 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 7.48 |
| Insert Compatibility | ZD_T11... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 5 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| MSC Part # | 55702310 |
| Mfr Part # | 7801341 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
